Bowden, Nicholas;
Gillette, Robert;
Paine, Stephen;
Patel, Amir;
(2025)
Remote Heart Rate Estimation of Canines Using a Mmwave Radar and Depth Camera.
IEEE Sensor Letters
, 9
(8)
, Article 3502804. 10.1109/LSENS.2025.3582208.
(In press).
Preview |
Text

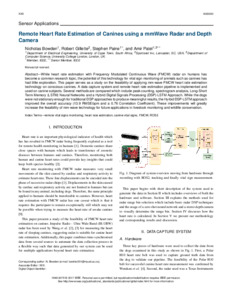

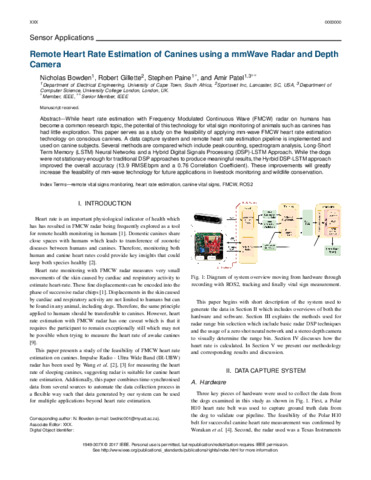

nick_SensorsLetters_2024 (1).pdf - Accepted Version Download (5MB) | Preview |
Abstract
While heart rate estimation with frequency modulated continuous wave (FMCW) radar on humans has become a common research topic, the potential of this technology for vital sign monitoring of animals, such as canines, has had little exploration. This letter serves as a study on the feasibility of applying mm-wave FMCW heart rate estimation technology on conscious canines. A data capture system and remote heart rate estimation pipeline is implemented and used on canine subjects. Several methods are compared which include peak counting, spectrogram analysis, long-short term memory (LSTM) neural networks and a hybrid digital signals processing (DSP)-LSTM approach. While the dogs were not stationary enough for traditional DSP approaches to produce meaningful results, the hyrbid DSP-LSTM approach improved the overall accuracy (13.9 root-mean-square (RMS) error bpm and a 0.76 correlation coefficient). These improvements will greatly increase the feasibility of mm-wave technology for future applications in livestock monitoring and wildlife conservation.
| Type: | Article |
|---|---|
| Title: | Remote Heart Rate Estimation of Canines Using a Mmwave Radar and Depth Camera |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/LSENS.2025.3582208 |
| Publisher version: | https://doi.org/10.1109/lsens.2025.3582208 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Science & Technology, Technology, Physical Sciences, Engineering, Electrical & Electronic, Instruments & Instrumentation, Physics, Applied, Engineering, Physics, Heart rate, Radar, Long short term memory, Dogs, IIR filters, Estimation, Radar tracking, Pipelines, Cameras, Spectrogram, Microwave/millimeter wave sensors, canine vital signs, frequency modulated continuous wave (FMCW), heart rate estimation, robot operating system (ROS2), remote vital signs monitoring |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Computer Science |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10216270 |
