Li, Jiayang; Jiang, Dai; Demosthenous, Andreas; (2025) A 2.43 mW Multi-frequency Electrical Impedance Tomography ASIC with Dual-Mode Impedance Readout. In: 2025 IEEE International Symposium on Circuits and Systems (ISCAS). (pp. pp. 1-4). IEEE: London, UK.

Preview

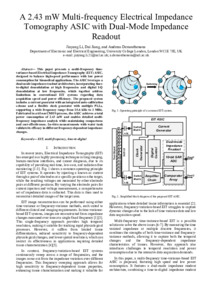

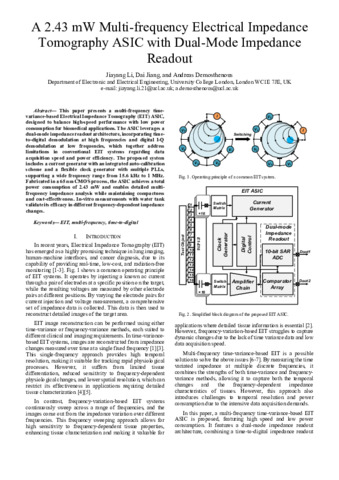

Text 2713_final.pdf - Accepted Version Download (1MB) | Preview

Abstract

This paper presents a multi-frequency time-variance-based Electrical Impedance Tomography (EIT) ASIC, designed to balance high-speed performance with low power consumption for biomedical applications. The ASIC leverages a dual-mode impedance readout architecture, incorporating time-to-digital demodulation at high frequencies and digital I-Q demodulation at low frequencies, which together address limitations in conventional EIT systems regarding data acquisition speed and power efficiency. The proposed system includes a current generator with an integrated auto-calibration scheme and a flexible clock generator with multiple PLLs, supporting a wide frequency range from 15.6 kHz to 1 MHz. Fabricated in a 65 nm CMOS process, the ASIC achieves a total power consumption of 2.43 mW and enables detailed multi-frequency impedance analysis while maintaining compactness and cost-effectiveness. In-vitro measurements with water tank validate its efficacy in different frequency-dependent impedance changes.
