Cox, Horatio RJ;
Sharpe, Matthew K;
McAleese, Callum;
Laitinen, Mikko;
Dulai, Jeevan;
Smith, Richard;
England, Jonathan;
... Kenyon, Anthony J; + view all
(2024)

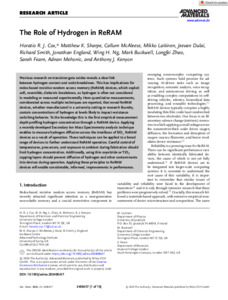

The Role of Hydrogen in ReRAM.
Advanced Materials
, 36
(52)
, Article 2408437. 10.1002/adma.202408437.
Preview |
PDF
Advanced Materials - 2024 - Cox - The Role of Hydrogen in ReRAM-2.pdf - Published Version Download (3MB) | Preview |
Abstract
Previous research on transistor gate oxides reveals a clear link between hydrogen content and oxide breakdown. This has implications for redox-based resistive random access memory (ReRAM) devices, which exploit soft, reversible, dielectric breakdown, as hydrogen is often not considered in modeling or measured experimentally. Here quantitative measurements, corroborated across multiple techniques are reported, that reveal ReRAM devices, whether manufactured in a university setting or research foundry, contain concentrations of hydrogen at levels likely to impact resistance switching behavior. To the knowledge this is the first empirical measurement depth profiling hydrogen concentration through a ReRAM device. Applying a recently-developed Secondary Ion Mass Spectrometry analysis technique enables to measure hydrogen diffusion across the interfaces of SiO<inf>x</inf> ReRAM devices as a result of operation. These techniques can be applied to a broad range of devices to further understand ReRAM operation. Careful control of temperatures, precursors, and exposure to ambient during fabrication should limit hydrogen concentration. Additionally, using thin oxynitride or TiO<inf>2</inf> capping layers should prevent diffusion of hydrogen and other contaminants into devices during operation. Applying these principles to ReRAM devices will enable considerable, informed, improvements in performance.
| Type: | Article |
|---|---|
| Title: | The Role of Hydrogen in ReRAM |
| Location: | Germany |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1002/adma.202408437 |
| Publisher version: | https://doi.org/10.1002/adma.202408437 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons License. The images or other third-party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Science & Technology, Physical Sciences, Technology, Chemistry, Multidisciplinary, Chemistry, Physical, Nanoscience & Nanotechnology, Materials Science, Multidisciplinary, Physics, Applied, Physics, Condensed Matter, Chemistry, Science & Technology - Other Topics, Materials Science, Physics, defects, hydrogen, memristor, ReRAM, ToF-ERDA, SILICON, DEGRADATION, MECHANISM, FILMS, CONDUCTIVITY, RELIABILITY, IONIZATION, ELECTRON, BEHAVIOR |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10213016 |
