The instrument control unit of the AIRS instrument on-board the ARIEL mission: design status after PDR

Noce, Vladimiro; Focardi, Mauro; Merola, Pierpaolo; Vela Nunez, Marina; Di Giorgio, Anna Maria; Ligori, Sebastiano; Capobianco, Vito; ... Tinetti, Giovanna; + view all (2024) The instrument control unit of the AIRS instrument on-board the ARIEL mission: design status after PDR. In: Coyle, Laura E and Matsuura, Shuji and Perrin, Marshall D, (eds.) Proceedings of SPIE: Space Telescopes and Instrumentation 2024: Optical, Infrared, and Millimeter Wave. (pp. 130924C). SPIE: Bellingham, WA, USA. Green open access

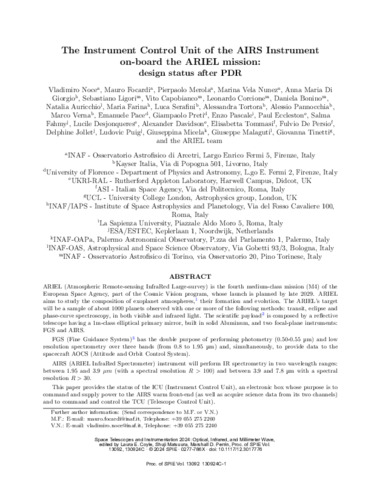

[thumbnail of 130924C.pdf]
Preview
Text
130924C.pdf - Published Version

Download (5MB) | Preview

Abstract

ARIEL (Atmospheric Remote-sensing InfraRed Large-survey) is the fourth medium-class mission (M4) of the European Space Agency, part of the Cosmic Vision program, whose launch is planned by late 2029. ARIEL aims to study the composition of exoplanet atmospheres, their formation and evolution. The ARIEL’s target will be a sample of about 1000 planets observed with one or more of the following methods: transit, eclipse and phase-curve spectroscopy, in both visible and infrared light. The scientific payload is composed by a reflective telescope having a 1m-class elliptical primary mirror, built in solid Aluminum, and two focal-plane instruments: FGS and AIRS. FGS (Fine Guidance System)3 has the double purpose of performing photometry (0.50-0.55 µm) and low resolution spectrometry over three bands (from 0.8 to 1.95 µm) and, simultaneously, to provide data to the spacecraft AOCS (Attitude and Orbit Control System). AIRS (ARIEL InfraRed Spectrometer) instrument will perform IR spectrometry in two wavelength ranges: between 1.95 and 3.9 µm (with a spectral resolution R > 100) and between 3.9 and 7.8 µm with a spectral resolution R > 30. This paper provides the status of the ICU (Instrument Control Unit), an electronic box whose purpose is to command and supply power to the AIRS warm front-end (as well as acquire science data from its two channels) and to command and control the TCU (Telescope Control Unit).

Type: Proceedings paper
Title: The instrument control unit of the AIRS instrument on-board the ARIEL mission: design status after PDR
Event: SPIE Astronomical Telescopes + Instrumentation 2024
Dates: 16 Jun 2024 - 22 Jun 2024
Open access status: An open access version is available from UCL Discovery
DOI: 10.1117/12.3017776
Publisher version: http://dx.doi.org/10.1117/12.3017776
Language: English
Additional information: This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: Exoplanets atmospheres, NIR spectroscopy, Infrared radiation, Infrared telescopes, Remote sensing, Instrument Control Unit
UCL classification: UCL
UCL > Provost and Vice Provost Offices > UCL BEAMS
UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences
UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy
URI: https://discovery.ucl.ac.uk/id/eprint/10197948
