Yadav, Rekha;
Barbosa, Fabio A;
Ferreira, Filipe M;
(2024)
Modal Dynamics for Space-Division Multiplexing in Multi-Mode Fibers.
Journal of Lightwave Technology
10.1109/jlt.2024.3365307.
(In press).
Preview |
PDF

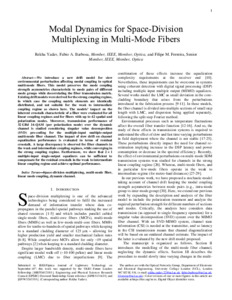

Manuscript_drift_modelling_R2_v2.pdf - Accepted Version Download (931kB) | Preview |
Abstract
We introduce a new drift model for slow environmental perturbation affecting modal coupling in optical multi-mode fibers. This model preserves the mode coupling strength asymmetries characteristic to mode pairs of different mode groups while decorrelating the fiber transmission matrix. Existing drift models were derived for the strong coupling regime, in which case the coupling matrix elements are identically distributed, and not suitable for the weak to intermediate coupling regime as shown here. The models' impact on the inherent crosstalk characteristic of a fiber were evaluated for all linear coupling regimes and for fibers with up to 42 spatial and polarization modes. Moreover, transmission performance of 32 GBd 16-QAM (per polarization mode) over the dynamic channel is studied considering singular value decomposition (SVD) pre-coding for the multiple-input multiple-output multi-mode fiber channel. The impact of slow drift on channel equalization performance is evaluated in terms of residual crosstalk. A large discrepancy is observed for fiber channels in the weak and intermediate coupling regimes, while converging in the strong coupling regime. Furthermore, we show that 2 × 1 multiple-input single-output equalizers can be sufficient to compensate for the residual crosstalk in the weak to intermediate linear coupling regime and achieve optimal performance.
| Type: | Article |
|---|---|
| Title: | Modal Dynamics for Space-Division Multiplexing in Multi-Mode Fibers |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/jlt.2024.3365307 |
| Publisher version: | http://dx.doi.org/10.1109/jlt.2024.3365307 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Optical fiber polarization , Couplings , Optical fiber dispersion , Perturbation methods , Optical fiber networks , Transmission line matrix methods , Crosstalk |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10188340 |
