Bateman, Joseph J;
Escribano-Rodriguez, Sonia;
Flynn, Samuel;
Price, Tony;
Radogna, Raffaella;
Shaikh, Saad;
Barnett, Harry;
... Jolly, Simon; + view all
(2025)
A novel approach for proton therapy pencil beam scanning patient specific quality assurance using an integrated detector system and 3D dose reconstruction.
Frontiers in Oncology
, 15
, Article 1677439. 10.3389/fonc.2025.1677439.
Preview |
Text

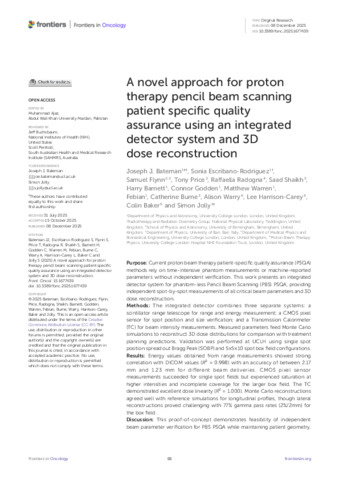

fonc-15-1677439.pdf - Published Version Download (24MB) | Preview |
Abstract
PURPOSE: Current proton beam therapy patient-specific quality assurance (PSQA) methods rely on time-intensive phantom measurements or machine-reported parameters without independent verification. This work presents an integrated detector system for phantom-less Pencil Beam Scanning (PBS) PSQA, providing independent spot-by-spot measurements of all critical beam parameters and 3D dose reconstruction. METHODS: The integrated detector combines three separate systems: a scintillator range telescope for range and energy measurement; a CMOS pixel sensor for spot position and size verification; and a Transmission Calorimeter (TC) for beam intensity measurements. Measured parameters feed Monte Carlo simulations to reconstruct 3D dose distributions for comparison with treatment planning predictions. Validation was performed at UCLH using single spot position spread out Bragg Peak (SOBP) and 5×5×10 spot box field configurations. RESULTS: Energy values obtained from range measurements showed strong correlation with DICOM values (R2 > 0.998) with an accuracy of between 2.17 mm and 1.23 mm for different beam deliveries. CMOS pixel sensor measurements succeeded for single spot fields but experienced saturation at higher intensities and incomplete coverage for the larger box field. The TC demonstrated excellent dose linearity (R2 = 1.000). Monte Carlo reconstructions agreed well with reference simulations for longitudinal profiles, though lateral reconstructions proved challenging with 77% gamma pass rates (2%/2mm) for the box field. DISCUSSION: This proof-of-concept demonstrates feasibility of independent beam parameter verification for PBS PSQA while maintaining patient geometry. The approach offers advantages over current methods but requires resolution of energy calibration offsets and detector limitations before clinical implementation. Future work will address these challenges and expand validation to clinical treatment plans.
| Type: | Article |
|---|---|
| Title: | A novel approach for proton therapy pencil beam scanning patient specific quality assurance using an integrated detector system and 3D dose reconstruction |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.3389/fonc.2025.1677439 |
| Publisher version: | https://doi.org/10.3389/fonc.2025.1677439 |
| Language: | English |
| Additional information: | © 2025 Bateman, Escribano-Rodriguez, Flynn, Price, Radogna, Shaikh, Barnett, Godden, Warren, Febian, Burne, Warry, Harrison-Carey, Baker and Jolly. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms. |
| Keywords: | Proton therapy, pencil beam scanning, patient-specific quality assurance, integrated detector system, 3D dose reconstruction, Pencil Beam Scanning (PBS) PSQA, scintillator range telescope, CMOS pixel sensor |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10218941 |
