Jahnke, K;
Gillard, W;
Schirmer, M;
Ealet, A;
Maciaszek, T;
Prieto, E;
Barbier, R;
... Oppizzi, F; + view all
(2025)
Euclid III. The NISP Instrument.
Astronomy & Astrophysics
, 697
, Article A3. 10.1051/0004-6361/202450786.
Preview |
PDF

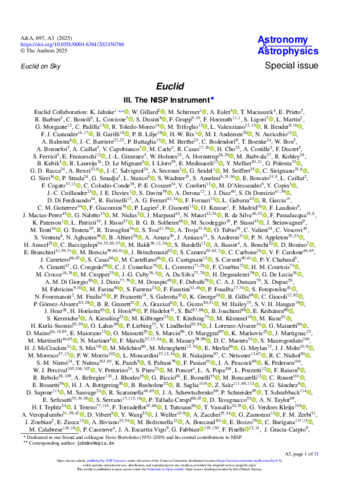

aa50786-24.pdf - Published Version Download (57MB) | Preview |
Abstract
The Near-Infrared Spectrometer and Photometer (NISP) on board the Euclid satellite provides multiband photometry and R ≳ 450 slitless grism spectroscopy in the 950–2020 nm wavelength range. In this reference article, we illuminate the background of NISP’s functional and calibration requirements, describe the instrument’s integral components, and provide all its key properties. We also sketch the processes needed to understand how NISP operates and is calibrated as well as its technical potentials and limitations. Links to articles providing more details and the technical background are included. The NISP’s 16 HAWAII-2RG (H2RG) detectors with a plate scale of 0″.3 pixel−1 deliver a field of view of 0.57 deg2. In photometric mode, NISP reaches a limiting magnitude of ~24.5 AB mag in three photometric exposures of about 100 s in exposure time for point sources and with a S/N of five. For spectroscopy, NISP’s pointsource sensitivity is a signal-to-noise ratio = 3.5 detection of an emission line with flux ~2 × 10−16 erg s−1 cm−2 integrated over two resolution elements of 13.4 Å in 3 × 560 s grism exposures at 1.6 µm (redshifted Hα). Our calibration includes on-ground and in-flight characterisation and monitoring of the pixel-based detector baseline, dark current, non-linearity, and sensitivity to guarantee a relative photometric accuracy better than 1.5% and a relative spectrophotometry better than 0.7%. The wavelength calibration must be accurate to 5 Å or better. The NISP is the state-of-the-art instrument in the near-infrared for all science beyond small areas available from HST and JWST – and it represents an enormous advance from any existing instrumentation due to its combination of field size and high throughput of telescope and instrument. During Euclid’s six-year survey covering 14 000 deg2 of extragalactic sky, NISP will be the backbone in determining distances of more than a billion galaxies. Its near-infrared data will become a rich reference imaging and spectroscopy data set for the coming decades.
| Type: | Article |
|---|---|
| Title: | Euclid III. The NISP Instrument |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1051/0004-6361/202450786 |
| Publisher version: | https://doi.org/10.1051/0004-6361/202450786 |
| Language: | English |
| Additional information: | © The Authors 2025. Open Access article, published by EDP Sciences, under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0). |
| Keywords: | instrumentation: photometers, instrumentation: spectrographs, space vehicles: instruments, surveys, cosmology: observations, infrared: general |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Space and Climate Physics |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10217023 |
