Calastra, Camilla Giulia;
Bono, Marika;
Granada, Aloma Blanch;
Tuleja, Aleksandra;
Bernhard, Sarah Maike;
Diaz-Zuccarini, Vanessa;
Balabani, Stavroula;
... Jung, Bernd; + view all
(2025)
Hemodynamic Characterization of Peripheral Arterio-Venous Malformations Using Rapid Contrast-Enhanced MR Imaging: An In Vitro and In Vivo Study.
Annals of Biomedical Engineering
, 53
(9)
pp. 2147-2163.
10.1007/s10439-025-03766-3.
Preview |
Text

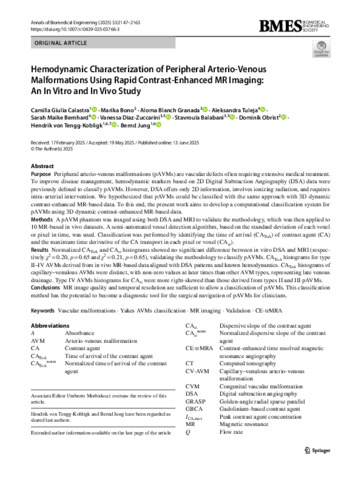

Hemodynamic Characterization of Peripheral Arterio-Venous Malformations Using Rapid Contrast-Enhanced MR Imaging An In Vitro.pdf - Published Version Download (1MB) | Preview |
Abstract
Purpose: Peripheral arterio-venous malformations (pAVMs) are vascular defects often requiring extensive medical treatment. To improve disease management, hemodynamic markers based on 2D Digital Subtraction Angiography (DSA) data were previously defined to classify pAVMs. However, DSA offers only 2D information, involves ionizing radiation, and requires intra-arterial intervention. We hypothesized that pAVMs could be classified with the same approach with 3D dynamic contrast-enhanced MR-based data. To this end, the present work aims to develop a computational classification system for pAVMs using 3D dynamic contrast-enhanced MR-based data. // Methods: A pAVM phantom was imaged using both DSA and MRI to validate the methodology, which was then applied to 10 MR-based in vivo datasets. A semi-automated vessel detection algorithm, based on the standard deviation of each voxel or pixel in time, was used. Classification was performed by identifying the time of arrival (CAToA) of contrast agent (CA) and the maximum time derivative of the CA transport in each pixel or voxel (CAsi). // Results: Normalized CAToA and CAsi histograms showed no significant difference between in vitro DSA and MRI (respectively χ2 = 0.20, p = 0.65 and χ2 = 0.21, p = 0.65), validating the methodology to classify pAVMs. CAToA histograms for type II–IV AVMs derived from in vivo MR-based data aligned with DSA patterns and known hemodynamics. CAToA histograms of capillary–venulous AVMs were distinct, with non-zero values at later times than other AVM types, representing late venous drainage. Type IV AVMs histograms for CAsi were more right-skewed than those derived from types II and III pAVMs. // Conclusions: MR image quality and temporal resolution are sufficient to allow a classification of pAVMs. This classification method has the potential to become a diagnostic tool for the surgical navigation of pAVMs for clinicians.
| Type: | Article |
|---|---|
| Title: | Hemodynamic Characterization of Peripheral Arterio-Venous Malformations Using Rapid Contrast-Enhanced MR Imaging: An In Vitro and In Vivo Study |
| Location: | United States |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1007/s10439-025-03766-3 |
| Publisher version: | https://doi.org/10.1007/s10439-025-03766-3 |
| Language: | English |
| Additional information: | This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. |
| Keywords: | Vascular malformations; Yakes AVMs classification; MR imaging; Validation; CE-trMRA |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10216428 |
