Schallig, W;
van den Noort, JC;
McCahill, J;
Stebbins, J;
Leardini, A;
Maas, M;
Harlaar, J;
(2020)
Comparing the kinematic output of the Oxford and Rizzoli Foot Models during normal gait and voluntary pathological gait in healthy adults.
Gait and Posture
, 82
pp. 126-132.
10.1016/j.gaitpost.2020.08.126.
Preview |
Text

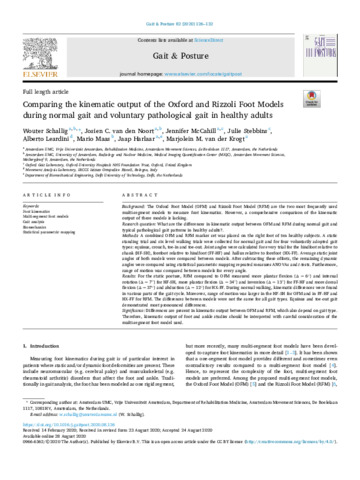

Schallig et al 2020. G&P.pdf - Published Version Download (2MB) | Preview |
Abstract
Background: The Oxford Foot Model (OFM) and Rizzoli Foot Model (RFM) are the two most frequently used multi-segment models to measure foot kinematics. However, a comprehensive comparison of the kinematic output of these models is lacking. Research question: What are the differences in kinematic output between OFM and RFM during normal gait and typical pathological gait patterns in healthy adults?. / Methods: A combined OFM and RFM marker set was placed on the right foot of ten healthy subjects. A static standing trial and six level walking trials were collected for normal gait and for four voluntarily adopted gait types: equinus, crouch, toe-in and toe-out. Joint angles were calculated for every trial for the hindfoot relative to shank (HF-SH), forefoot relative to hindfoot (FF-HF) and hallux relative to forefoot (HX-FF). Average static joint angles of both models were compared between models. After subtracting these offsets, the remaining dynamic angles were compared using statistical parametric mapping repeated measures ANOVAs and t-tests. Furthermore, range of motion was compared between models for every angle. / Results: For the static posture, RFM compared to OFM measured more plantar flexion (Δ = 6°) and internal rotation (Δ = 7°) for HF-SH, more plantar flexion (Δ = 34°) and inversion (Δ = 13°) for FF-HF and more dorsal flexion (Δ = 37°) and abduction (Δ = 12°) for HX-FF. During normal walking, kinematic differences were found in various parts of the gait cycle. Moreover, range of motion was larger in the HF-SH for OFM and in FF-HF and HX-FF for RFM. The differences between models were not the same for all gait types. Equinus and toe-out gait demonstrated most pronounced differences. / Significance: Differences are present in kinematic output between OFM and RFM, which also depend on gait type. Therefore, kinematic output of foot and ankle studies should be interpreted with careful consideration of the multi-segment foot model used.
| Type: | Article |
|---|---|
| Title: | Comparing the kinematic output of the Oxford and Rizzoli Foot Models during normal gait and voluntary pathological gait in healthy adults |
| Location: | England |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.gaitpost.2020.08.126 |
| Publisher version: | https://doi.org/10.1016/j.gaitpost.2020.08.126 |
| Language: | English |
| Additional information: | Copyright © 2020 The Author(s). Published by Elsevier B.V. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Foot kinematics, Multi-segment foot models, Gait analysis, Biomechanics, Statistical parametric mapping |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL GOS Institute of Child Health UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL GOS Institute of Child Health > Infection, Immunity and Inflammation Dept |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10215540 |
