Akhtar, Muhammad;
Ashraf, Waqar Muhammad;
Hayat, Nasir;
Uddin, Ghulam Moeen;
Riaz, Fahid;
(2025)
Numerical and Experimental Investigation of Gas
Turbine Rotor for Early Fault Detection.
Energy Science & Engineering
, 13
(5)
pp. 2546-2564.
10.1002/ese3.70054.
Preview |
Text

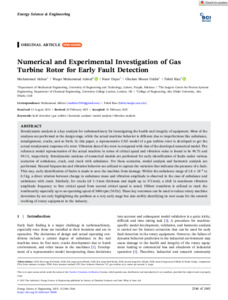

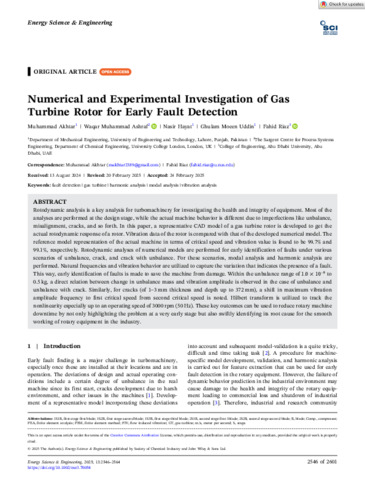

Ashraf_Energy Science Engineering - 2025 - Akhtar - Numerical and Experimental Investigation of Gas Turbine Rotor for Early.pdf Download (2MB) | Preview |
Abstract
Rotodynamic analysis is a key analysis for turbomachinery for investigating the health and integrity of equipment. Most of the analyses are performed at the design stage, while the actual machine behavior is different due to imperfections like unbalance, misalignment, cracks, and so forth. In this paper, a representative CAD model of a gas turbine rotor is developed to get the actual rotodynamic response of a rotor. Vibration data of the rotor is compared with that of the developed numerical model. The reference model representation of the actual machine in terms of critical speed and vibration value is found to be 99.7% and 99.1%, respectively. Rotodynamic analyses of numerical models are performed for early identification of faults under various scenarios of unbalance, crack, and crack with unbalance. For these scenarios, modal analysis and harmonic analysis are performed. Natural frequencies and vibration behavior are utilized to capture the variation that indicates the presence of a fault. This way, early identification of faults is made to save the machine from damage. Within the unbalance range of 1.0 × 10−9 to 0.5 kg, a direct relation between change in unbalance mass and vibration amplitude is observed in the case of unbalance and unbalance with crack. Similarly, for cracks (of 1–3 mm thickness and depth up to 372 mm), a shift in maximum vibration amplitude frequency to first critical speed from second critical speed is noted. Hilbert transform is utilized to track the nonlinearity especially up to an operating speed of 3000 rpm (50 Hz). These key outcomes can be used to reduce rotary machine downtime by not only highlighting the problem at a very early stage but also swiftly identifying its root cause for the smooth working of rotary equipment in the industry.
| Type: | Article |
|---|---|
| Title: | Numerical and Experimental Investigation of Gas Turbine Rotor for Early Fault Detection |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1002/ese3.70054 |
| Publisher version: | https://doi.org/10.1002/ese3.70054 |
| Language: | English |
| Additional information: | Copyright © 2025 The Author(s). Energy Science & Engineering published by Society of Chemical Industry and John Wiley & Sons Ltd. This is an open access article under the terms of the Creative Commons Attribution License, https://creativecommons.org/licenses/by/4.0/, which permits use, distribution and reproduction in any medium, provided the original work is properly cited. |
| Keywords: | Fault detection; gas turbine; harmonic analysis; modal analysis; vibration analysis |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10214980 |
