Henderson, Calum S;
Salter, Patrick S;
Jonasson, Emil T;
Jackman, Richard B;
(2025)
Toward All‐Carbon Electronics Buried in Diamond.
Advanced Electronic Materials
, Article e00267. 10.1002/aelm.202500267.
(In press).
Preview |
Text

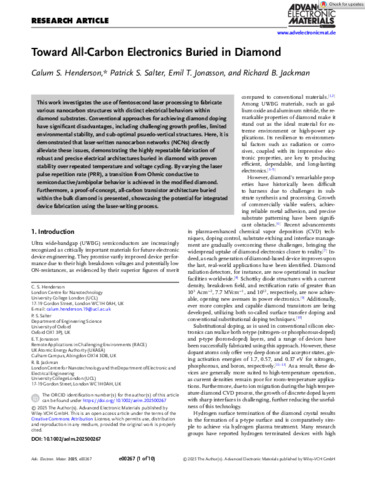

Henderson et al. - Toward All-Carbon Electronics Buried in Diamond.pdf - Published Version Download (1MB) | Preview |
Abstract
Abstract This work investigates the use of femtosecond laser processing to fabricate various nanocarbon structures with distinct electrical behaviors within diamond substrates. Conventional approaches for achieving diamond doping have significant disadvantages, including challenging growth profiles, limited environmental stability, and sub‐optimal psuedo‐vertical structures. Here, it is demonstrated that laser‐written nanocarbon networks (NCNs) directly alleviate these issues, demonstrating the highly repeatable fabrication of robust and precise electrical architectures buried in diamond with proven stability over repeated temperature and voltage cycling. By varying the laser pulse repetition rate (PRR), a transition from Ohmic conductive to semiconductive/ambipolar behavior is achieved in the modified diamond. Furthermore, a proof‐of‐concept, all‐carbon transistor architecture buried within the bulk diamond is presented, showcasing the potential for integrated device fabrication using the laser‐writing process.
Type: | Article |
---|---|
Title: | Toward All‐Carbon Electronics Buried in Diamond |
Open access status: | An open access version is available from UCL Discovery |
DOI: | 10.1002/aelm.202500267 |
Publisher version: | https://doi.org/10.1002/aelm.202500267 |
Language: | English |
Additional information: | © 2025 The Author(s). Advanced Electronic Materials published by Wiley-VCH GmbH. This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited |
UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > London Centre for Nanotechnology |
URI: | https://discovery.ucl.ac.uk/id/eprint/10214595 |
