Stolp, Wiebe;
van Assche, Frederic;
Tang, Ruizhi;
Desplenter, Karel;
Castelblanco, Caori Organista;
Ziesche, Ralf;
Cipiccia, Silvia;
... Boone, Matthieu N; + view all
(2025)
Broadband Ptychotomography with a Hyperspectral Detector.
Physical Review Letters
, 134
(25)
, Article 257001. 10.1103/kbrf-gb9c.
Preview |
Text

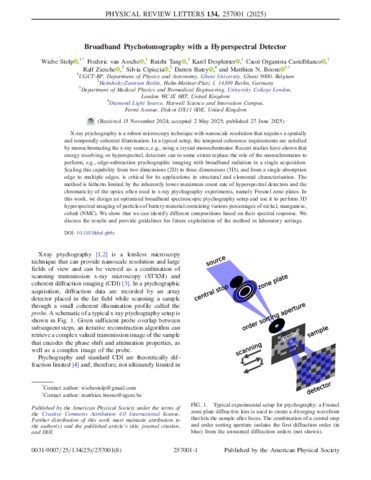

Cipiccia_kbrf-gb9c.pdf Download (3MB) | Preview |
Abstract
X-ray ptychography is a robust microscopy technique with nanoscale resolution that requires a spatially and temporally coherent illumination. In a typical setup, the temporal coherence requirements are satisfied by monochromating the x-ray source, e.g., using a crystal monochromator. Recent studies have shown that energy resolving, or hyperspectral, detectors can to some extent replace the role of the monochromator to perform, e.g., edge-subtraction ptychographic imaging with broadband radiation in a single acquisition. Scaling this capability from two dimensions (2D) to three dimensions (3D), and from a single absorption edge to multiple edges, is critical for its applications in structural and elemental characterisation. The method is hitherto limited by the inherently lower maximum count rate of hyperspectral detectors and the chromaticity of the optics often used in x-ray ptychography experiments, namely Fresnel zone plates. In this work, we design an optimized broadband spectroscopic ptychography setup and use it to perform 3D hyperspectral imaging of particles of battery material containing various percentages of nickel, manganese, cobalt (NMC). We show that we can identify different compositions based on their spectral response. We discuss the results and provide guidelines for future exploitation of the method in laboratory settings.
| Type: | Article |
|---|---|
| Title: | Broadband Ptychotomography with a Hyperspectral Detector |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1103/kbrf-gb9c |
| Publisher version: | https://doi.org/10.1103/kbrf-gb9c |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons License. The images or other third-party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Science & Technology, Physical Sciences, Physics, Multidisciplinary, Physics, RAY, TRANSMISSION |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10212023 |
