Liu, Qiong;
Andersen, Lars Vabbersgaard;
Wu, Min;
Zhang, Mingzhong;
Snoeck, Didier;
(2025)
Numerical investigations of the abrasion behavior of concrete based on a coupled Eulerian–Lagrangian approach.
Computers and Structures
, 315
, Article 107808. 10.1016/j.compstruc.2025.107808.
Preview |
Text

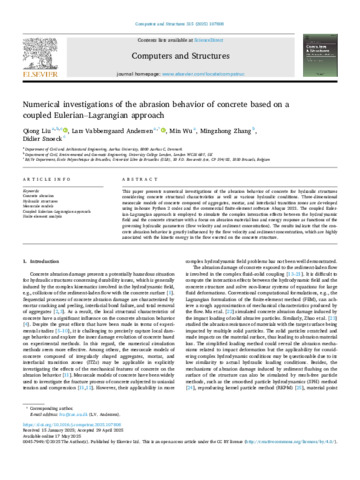

Zhang_Numerical investigations of the abrasion behavior of concrete based on a coupled Eulerian–Lagrangian approach_VoR.pdf Download (15MB) | Preview |
Abstract
This paper presents numerical investigations of the abrasion behavior of concrete for hydraulic structures considering concrete structural characteristics as well as various hydraulic conditions. Three-dimensional mesoscale models of concrete composed of aggregates, mortar, and interfacial transition zones are developed using in-house Python 2 codes and the commercial finite-element software Abaqus 2021. The coupled Eulerian–Lagrangian approach is employed to simulate the complex interaction effects between the hydrodynamic field and the concrete structure with a focus on abrasion material loss and energy response as functions of the governing hydraulic parameters (flow velocity and sediment concentration). The results indicate that the concrete abrasion behavior is greatly influenced by the flow velocity and sediment concentration, which are highly associated with the kinetic energy in the flow exerted on the concrete structure.
| Type: | Article |
|---|---|
| Title: | Numerical investigations of the abrasion behavior of concrete based on a coupled Eulerian–Lagrangian approach |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.compstruc.2025.107808 |
| Publisher version: | https://doi.org/10.1016/j.compstruc.2025.107808 |
| Language: | English |
| Additional information: | © 2025 The Author(s). Published by Elsevier Ltd. under a Creative Commons license (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Concrete abrasion, Hydraulic structures, Mesoscale models, Coupled Eulerian–Lagrangian approach, Finite element analysis |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Civil, Environ and Geomatic Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10208622 |
