Wirth, V;
Bräunig, J;
Khouri, D;
Gutsche, F;
Vossiek, M;
Weyrich, T;
Stamminger, M;
(2024)
Automatic Spatial Calibration of Near-Field MIMO Radar With Respect to Optical Depth Sensors.
In:
IEEE International Conference on Intelligent Robots and Systems.
(pp. pp. 8322-8329).
IEEE: Abu Dhabi, United Arab Emirates.
Preview |
Text

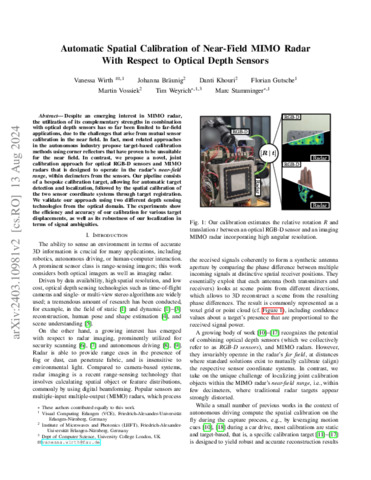

2403.10981v2.pdf - Accepted Version Download (9MB) | Preview |
Abstract
Despite an emerging interest in MIMO radar, the utilization of its complementary strengths in combination with optical depth sensors has so far been limited to far-field applications, due to the challenges that arise from mutual sensor calibration in the near field. In fact, most related approaches in the autonomous industry propose target-based calibration methods using corner reflectors that have proven to be unsuitable for the near field. In contrast, we propose a novel, joint calibration approach for optical RGB-D sensors and MIMO radars that is designed to operate in the radar's near-field range, within decimeters from the sensors. Our pipeline consists of a bespoke calibration target, allowing for automatic target detection and localization, followed by the spatial calibration of the two sensor coordinate systems through target registration. We validate our approach using two different depth sensing technologies from the optical domain. The experiments show the efficiency and accuracy of our calibration for various target displacements, as well as its robustness of our localization in terms of signal ambiguities.
| Type: | Proceedings paper |
|---|---|
| Title: | Automatic Spatial Calibration of Near-Field MIMO Radar With Respect to Optical Depth Sensors |
| Event: | 2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) |
| Dates: | 14 Oct 2024 - 18 Oct 2024 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/IROS58592.2024.10801705 |
| Publisher version: | https://doi.org/10.1109/iros58592.2024.10801705 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Laser radar, MIMO radar, Optical imaging, Optical variables control, Adaptive optics, Sensor systems, Calibration, Sensors, Optical sensors, Optical reflection |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Computer Science |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10205381 |
