In silico model for automated calculation of functional metrics in animal models of peripheral nerve injury repair

Laranjeira, Simão; Guillemot-Legris, Owen; Girmahun, Gedion; Roberton, Victoria; Phillips, James B; Shipley, Rebecca J; (2024) In silico model for automated calculation of functional metrics in animal models of peripheral nerve injury repair. Computers in Biology and Medicine , 181 , Article 109036. 10.1016/j.compbiomed.2024.109036.

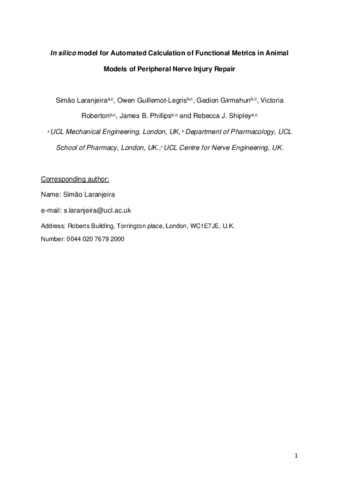

[thumbnail of Laranjeira Gomes_Manuscript_CBM.pdf] Text
Laranjeira Gomes_Manuscript_CBM.pdf
Access restricted to UCL open access staff until 30 August 2025.

Download (1MB)

Abstract

The rat sciatic nerve model is commonly used to test novel therapies for nerve injury repair. The static sciatic index (SSI) is a useful metric for quantifying functional recovery, and involves comparing an operated paw versus a control paw using a weighted ratio between the toe spread and the internal toe spread. To calculate it, rats are placed in a transparent box, photos are taken from underneath and the toe distances measured manually. This is labour intensive and subject to human error due to the challenge of consistently taking photos, identifying digits and making manual measurements. Although several commercial kits have been developed to address this challenge, they have seen little dissemination due to cost. Here we develop a novel algorithm for automatic measurement of SSI metrics based on video data using casted U-Nets. The algorithm consists of three U-Nets, one to segment the hind paws and two for the two pairs of digits which input into the SSI calculation. A training intersection over union error of 60 % and 80 % was achieved for the back paws and for both digit segmentation U-Nets, respectfully. The algorithm was tested against video data from three separate experiments. Compared to manual measurements, the algorithm provides the same profile of recovery for every experiment but with a tighter standard deviation in the SSI measure. Through the open-source release of this algorithm, we aim to provide an inexpensive tool to more reliably quantify functional recovery metrics to the nerve repair research community.

Type: Article
Title: In silico model for automated calculation of functional metrics in animal models of peripheral nerve injury repair
Location: United States
DOI: 10.1016/j.compbiomed.2024.109036
Publisher version: http://dx.doi.org/10.1016/j.compbiomed.2024.109036
Language: English
Additional information: This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: Peripheral Nerve Injury; Sciatic mouse model; Machine learning; U-Net; Functional recovery; Static Sciatic Index; Open Source
