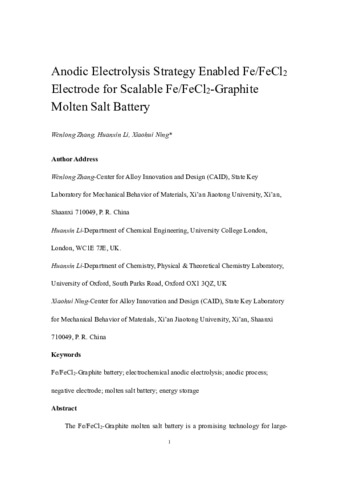

Zhang, Wenlong; Li, Huanxin; Ning, Xiaohui; (2024) Anodic Electrolysis Strategy Enabled Fe/FeCl2 Electrode for Scalable Fe/FeCl2-Graphite Molten Salt Battery. ACS Applied Materials & Interfaces , 16 (23) pp. 29491-30610. 10.1021/acsami.4c03592.

Text AMI-Manuscript.pdf - Other Access restricted to UCL open access staff until 4 June 2025. Download (1MB)

Abstract

The Fe/FeCl2-Graphite molten salt battery is a promising technology for large-scale energy storage, offering a long lifespan, a low operating temperature (<200 °C), and cost efficiency. However, its practical applications are hindered by the lack of a scalable preparation approach and insufficient redox stability in the Fe/FeCl2 electrode. Our study introduces an electrochemical anodic electrolysis (EAE) strategy, employing the anodic process (Fe → Fe2+) in an Al|AlCl3/NaCl/LiCl|Fe electrolysis system for the Fe/Fe2+ negative electrode in the Fe/FeCl2-Graphite battery. The EAE strategy forms an oxidized film, preventing incipient dissolution in the electrolyte and addressing redox stability issues with FeCl2 as the active substance. The Fe/Fe2+ negative electrode prepared by the EAE strategy exhibits a stabilized capacity of 0.72 mAh/cm2 after 7000 cycles at 5 mA/cm2, with a lower polarization level (∼29 mV) compared to FeCl2 as the active component. The flexibility of the EAE strategy is validated in both galvanostatic and potentiostatic processes, with a discharge capacity of 14 mAh after 1000 cycles, a capacity retention rate of 85%, and a Coulombic efficiency of 98% in the potentiostatic anodic electrolysis Fe/Fe2+ electrode. The scalability and reliability of the EAE strategy are further demonstrated in capacity-expanded Fe/FeCl2-Graphite batteries, reaching a discharge capacity of 155.1 mAh after 1000 cycles at 130 mA, with a capacity retention rate of 94%. For the first time, we showcased an EAE approach capable of producing Fe/Fe2+ electrodes at a rate of about 68.6 m2 per day. Additionally, we successfully assembled an Fe/FeCl2-Graphite battery at about a 0.42 ampere-hour level, paving the way for the scalable application of Fe/FeCl2-Graphite batteries.
