Liu, Fangqi;
Habibollahi, Maryam;
Wu, Yu;
Neshatvar, Nazanin;
Zhang, Jiaxing;
Zinno, Ciro;
Akouissi, Outman;
... Demosthenous, Andreas; + view all
(2024)
A multi-channel stimulator with an active electrode array implant for vagal-cardiac neuromodulation studies.
Bioelectronic Medicine
, 10
, Article 16. 10.1186/s42234-024-00148-3.
Preview |
Text

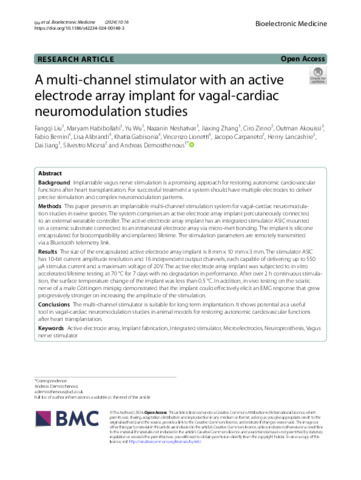

A multi-channel stimulator with an active electrode array implant for vagal-cardiac neuromodulation studies.pdf - Published Version Download (3MB) | Preview |
Abstract
Background: Implantable vagus nerve stimulation is a promising approach for restoring autonomic cardiovascular functions after heart transplantation. For successful treatment a system should have multiple electrodes to deliver precise stimulation and complex neuromodulation patterns. // Methods: This paper presents an implantable multi-channel stimulation system for vagal-cardiac neuromodulation studies in swine species. The system comprises an active electrode array implant percutaneously connected to an external wearable controller. The active electrode array implant has an integrated stimulator ASIC mounted on a ceramic substrate connected to an intraneural electrode array via micro-rivet bonding. The implant is silicone encapsulated for biocompatibility and implanted lifetime. The stimulation parameters are remotely transmitted via a Bluetooth telemetry link. // Results: The size of the encapsulated active electrode array implant is 8 mm × 10 mm × 3 mm. The stimulator ASIC has 10-bit current amplitude resolution and 16 independent output channels, each capable of delivering up to 550 µA stimulus current and a maximum voltage of 20 V. The active electrode array implant was subjected to in vitro accelerated lifetime testing at 70 °C for 7 days with no degradation in performance. After over 2 h continuous stimulation, the surface temperature change of the implant was less than 0.5 °C. In addition, in vivo testing on the sciatic nerve of a male Göttingen minipig demonstrated that the implant could effectively elicit an EMG response that grew progressively stronger on increasing the amplitude of the stimulation. // Conclusions: The multi-channel stimulator is suitable for long term implantation. It shows potential as a useful tool in vagal-cardiac neuromodulation studies in animal models for restoring autonomic cardiovascular functions after heart transplantation.
| Type: | Article |
|---|---|
| Title: | A multi-channel stimulator with an active electrode array implant for vagal-cardiac neuromodulation studies |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1186/s42234-024-00148-3 |
| Publisher version: | http://dx.doi.org/10.1186/s42234-024-00148-3 |
| Language: | English |
| Additional information: | This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. |
| Keywords: | Active electrode array, Implant fabrication, Integrated stimulator, Microelectrodes, Neuroprosthesis, Vagus nerve stimulator |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10194285 |
