Mikhaylova, E;
Jehl, M;
Deidda, D;
Thielemans, K;
Dao, V;
Rotondi, L;
Ahnen, M;
(2024)
Simulated NEMA NU2 Performance of the Ultra-Compact Clinical NeuroLF Brain PET.
In:
2022 IEEE NSS/MIC RTSD - IEEE Nuclear Science Symposium, Medical Imaging Conference and Room Temperature Semiconductor Detector Conference.
IEEE
Preview |
Text

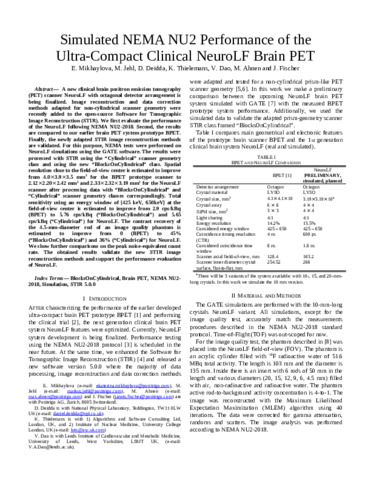

MIC2022_Positrigo_summary.pdf - Accepted Version Download (103kB) | Preview |
Abstract
A new clinical brain positron emission tomography (PET) scanner NeuroLF with octagonal detector arrangement is being finalized. Image reconstruction and data correction methods adapted for non-cylindrical scanner geometry were recently added to the open-source Software for Tomographic Image Reconstruction (STIR). We first evaluate the performance of the NeuroLF following NEMA NU2-2018. Second, the results are compared to our earlier brain PET system prototype BPET. Finally, the newly adapted STIR image reconstruction methods are validated. For this purpose, NEMA tests were performed on NeuroLF GATE simulations. The results were processed with STIR using the "Cylindrical"scanner geometry class and using the new "BlocksOnCylindrical"class. NeuroLF is based on the clinical prototye PET system BPET. The resultring spatial resolution close to the field-of-view center is estimated in simulations to improve from 4.0×3.9×3.5 mm3 when measured with the BPET prototype scanner to 1.8×2.3× 1.6 mm3 for the NeuroLF scanner variant with 10-mm-long crystals. Total sensitivity using an energy window of [425 keV, 650 keV] is estimated in simulations to improve from (2.9 cps/kBq / 3.7 cps/kBq) (BPET) to (5.3 cps/kBq / 7.6 cps/kBq) for NeuroLF with 10 mm-long crystals (center / off center). When using 20 mm/long crystals in NeuroLF, this is simulated to improve to (13.2 cps/kBq / 17.0 cps/kBq). The contrast recovery of image quality phantoms is estimated to improve significantly as well. We show further comparisons on the peak noise-equivalent count rate. The obtained results validate the new STIR image reconstruction methods and support the performance evaluation of NeuroLF.
| Type: | Proceedings paper |
|---|---|
| Title: | Simulated NEMA NU2 Performance of the Ultra-Compact Clinical NeuroLF Brain PET |
| Event: | 2022 IEEE Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC) |
| Dates: | 5 Nov 2022 - 12 Nov 2022 |
| ISBN-13: | 978-1-6654-8873-0 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/NSS/MIC44845.2022.10399284 |
| Publisher version: | https://doi.org/10.1109/NSS/MIC44845.2022.10399284 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Medical Sciences > Div of Medicine UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Medical Sciences > Div of Medicine > Department of Imaging |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10192766 |
