Wood, Victoria E;
Kellerman, Mark-Adam;
Groves, Kate;
Quaglia, Milena;
Topp, Elizabeth M;
Matejtschuk, Paul;
Dalby, Paul A;
(2024)
Investigation of the Solid-State Interactions in Lyophilized Human G-CSF Using Hydrogen-Deuterium Exchange Mass Spectrometry.
Molecular Pharmaceutics
, 21
(4)
pp. 1965-1976.
10.1021/acs.molpharmaceut.3c01211.
Preview |
PDF

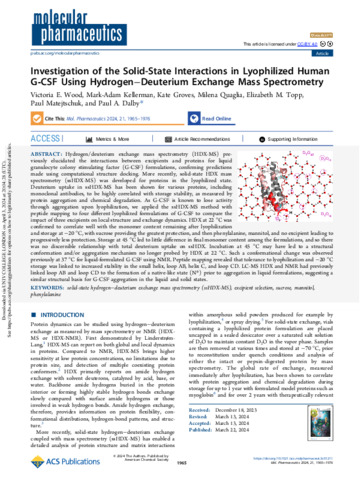

wood-et-al-2024-investigation-of-the-solid-state-interactions-in-lyophilized-human-g-csf-using-hydrogen-deuterium.pdf - Published Version Download (5MB) | Preview |
Abstract
Hydrogen/deuterium exchange mass spectrometry (HDX-MS) previously elucidated the interactions between excipients and proteins for liquid granulocyte colony stimulating factor (G-CSF) formulations, confirming predictions made using computational structure docking. More recently, solid-state HDX mass spectrometry (ssHDX-MS) was developed for proteins in the lyophilized state. Deuterium uptake in ssHDX-MS has been shown for various proteins, including monoclonal antibodies, to be highly correlated with storage stability, as measured by protein aggregation and chemical degradation. As G-CSF is known to lose activity through aggregation upon lyophilization, we applied the ssHDX-MS method with peptide mapping to four different lyophilized formulations of G-CSF to compare the impact of three excipients on local structure and exchange dynamics. HDX at 22 °C was confirmed to correlate well with the monomer content remaining after lyophilization and storage at -20 °C, with sucrose providing the greatest protection, and then phenylalanine, mannitol, and no excipient leading to progressively less protection. Storage at 45 °C led to little difference in final monomer content among the formulations, and so there was no discernible relationship with total deuterium uptake on ssHDX. Incubation at 45 °C may have led to a structural conformation and/or aggregation mechanism no longer probed by HDX at 22 °C. Such a conformational change was observed previously at 37 °C for liquid-formulated G-CSF using NMR. Peptide mapping revealed that tolerance to lyophilization and -20 °C storage was linked to increased stability in the small helix, loop AB, helix C, and loop CD. LC-MS HDX and NMR had previously linked loop AB and loop CD to the formation of a native-like state (N*) prior to aggregation in liquid formulations, suggesting a similar structural basis for G-CSF aggregation in the liquid and solid states.
| Type: | Article |
|---|---|
| Title: | Investigation of the Solid-State Interactions in Lyophilized Human G-CSF Using Hydrogen-Deuterium Exchange Mass Spectrometry |
| Location: | United States |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1021/acs.molpharmaceut.3c01211 |
| Publisher version: | http://dx.doi.org/10.1021/acs.molpharmaceut.3c0121... |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third-party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Excipient selection, mannitol, phenylalanine, solid-state hydrogen−deuterium exchange mass spectrometry (ssHDX-MS), sucrose |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Biochemical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10190117 |
