Hardwick, James;
Kazemi, Ben;
Talamali, Mohamed S;
Christopoulos, Giorgos;
Subramanian, Sriram;
(2023)
Actively Reconfigurable Segmented Spatial Sound Modulators.
Advanced Materials Technologies
, Article 2301459. 10.1002/admt.202301459.
(In press).
Preview |
PDF

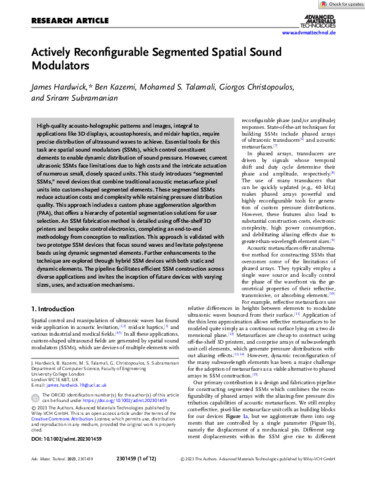

Actively Reconfigurable Segmented Spatial Sound Modulators.pdf - Published Version Download (8MB) | Preview |
Abstract
High‐quality acousto‐holographic patterns and images, integral to applications like 3D displays, acoustophoresis, and midair haptics, require precise distribution of ultrasound waves to achieve. Essential tools for this task are spatial sound modulators (SSMs), which control constituent elements to enable dynamic distribution of sound pressure. However, current ultrasonic SSMs face limitations due to high costs and the intricate actuation of numerous small, closely spaced units. This study introduces “segmented SSMs,” novel devices that combine traditional acoustic metasurface pixel units into custom‐shaped segmented elements. These segmented SSMs reduce actuation costs and complexity while retaining pressure distribution quality. This approach includes a custom phase agglomeration algorithm (PAA), that offers a hierarchy of potential segmentation solutions for user selection. An SSM fabrication method is detailed using off‐the‐shelf 3D printers and bespoke control electronics, completing an end‐to‐end methodology from conception to realization. This approach is validated with two prototype SSM devices that focus sound waves and levitate polystyrene beads using dynamic segmented elements. Further enhancements to the technique are explored through hybrid SSM devices with both static and dynamic elements. The pipeline facilitates efficient SSM construction across diverse applications and invites the inception of future devices with varying sizes, uses, and actuation mechanisms.
| Type: | Article |
|---|---|
| Title: | Actively Reconfigurable Segmented Spatial Sound Modulators |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1002/admt.202301459 |
| Publisher version: | http://dx.doi.org/10.1002/admt.202301459 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third-party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Acoustic metasurfaces, computational fabrication, spatial sound modulators |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Computer Science |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10185016 |
