Morrison, Andrew RT;
Girichandran, Nandalal;
Wols, Quincy;
Kortlever, Ruud;
(2023)

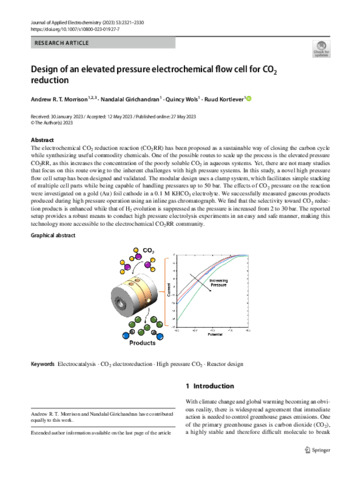

Design of an elevated pressure electrochemical flow cell for CO2 reduction.
Journal of Applied Electrochemistry
, 53
(12)
pp. 2321-2330.
10.1007/s10800-023-01927-7.
Preview |
PDF
s10800-023-01927-7.pdf - Published Version Download (1MB) | Preview |
Abstract
The electrochemical CO2 reduction reaction (CO2RR) has been proposed as a sustainable way of closing the carbon cycle while synthesizing useful commodity chemicals. One of the possible routes to scale up the process is the elevated pressure CO2RR, as this increases the concentration of the poorly soluble CO2 in aqueous systems. Yet, there are not many studies that focus on this route owing to the inherent challenges with high pressure systems. In this study, a novel high pressure flow cell setup has been designed and validated. The modular design uses a clamp system, which facilitates simple stacking of multiple cell parts while being capable of handling pressures up to 50 bar. The effects of CO2 pressure on the reaction were investigated on a gold (Au) foil cathode in a 0.1 M KHCO3 electrolyte. We successfully measured gaseous products produced during high pressure operation using an inline gas chromatograph. We find that the selectivity toward CO2 reduction products is enhanced while that of H2 evolution is suppressed as the pressure is increased from 2 to 30 bar. The reported setup provides a robust means to conduct high pressure electrolysis experiments in an easy and safe manner, making this technology more accessible to the electrochemical CO2RR community. Graphical abstract: [Figure not available: see fulltext.].
| Type: | Article |
|---|---|
| Title: | Design of an elevated pressure electrochemical flow cell for CO2 reduction |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1007/s10800-023-01927-7 |
| Publisher version: | http://dx.doi.org/10.1007/s10800-023-01927-7 |
| Language: | English |
| Additional information: | This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. |
| Keywords: | Science & Technology, Physical Sciences, Electrochemistry, Electrocatalysis, CO2 electroreduction, High pressure CO2, Reactor design, GAS-DIFFUSION ELECTRODES, CARBON-DIOXIDE, FORMIC-ACID, TIN CATHODE, ELECTROREDUCTION, ELECTROLYZER, CHALLENGES, INSIGHTS, METHANOL, POWER |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10184901 |
