Ong, Jun Jie;
Chow, Yee Lam;
Gaisford, Simon;
Cook, Michael T;
Swift, Thomas;
Telford, Richard;
Rimmer, Stephen;
... Basit, Abdul W; + view all
(2023)
Supramolecular chemistry enables vat photopolymerization 3D printing of novel water-soluble tablets.
International Journal of Pharmaceutics
, 643
, Article 123286. 10.1016/j.ijpharm.2023.123286.
Preview |
Text

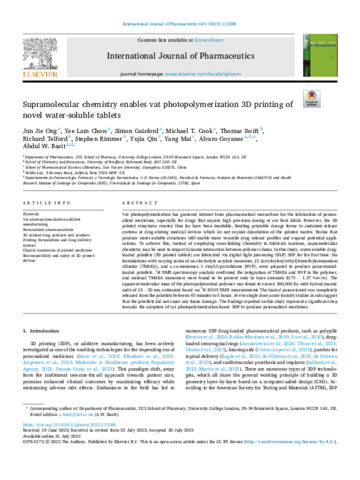

1-s2.0-S0378517323007068-main.pdf - Published Version Download (10MB) | Preview |
Abstract
Vat photopolymerization has garnered interest from pharmaceutical researchers for the fabrication of personalised medicines, especially for drugs that require high precision dosing or are heat labile. However, the 3D printed structures created thus far have been insoluble, limiting printable dosage forms to sustained-release systems or drug-eluting medical devices which do not require dissolution of the printed matrix. Resins that produce water-soluble structures will enable more versatile drug release profiles and expand potential applications. To achieve this, instead of employing cross-linking chemistry to fabricate matrices, supramolecular chemistry may be used to impart dynamic interaction between polymer chains. In this study, water-soluble drug-loaded printlets (3D printed tablets) are fabricated via digital light processing (DLP) 3DP for the first time. Six formulations with varying ratios of an electrolyte acrylate monomer, [2-(acryloyloxy)ethyl]trimethylammonium chloride (TMAEA), and a co-monomer, 1-vinyl-2-pyrrolidone (NVP), were prepared to produce paracetamol-loaded printlets. 1H NMR spectroscopy analysis confirmed the integration of TMAEA and NVP in the polymer, and residual TMAEA monomers were found to be present only in trace amounts (0.71 - 1.37 %w/w). The apparent molecular mass of the photopolymerised polymer was found to exceed 300,000 Da with hydrodynamic radii of 15 - 20 nm, estimated based on 1H DOSY NMR measurements The loaded paracetamol was completely released from the printlets between 45 minutes to 5 hours. In vivo single-dose acute toxicity studies in rats suggest that the printlets did not cause any tissue damage. The findings reported in this study represent a significant step towards the adoption of vat photopolymerization-based 3DP to produce personalised medicines.
| Type: | Article |
|---|---|
| Title: | Supramolecular chemistry enables vat photopolymerization 3D printing of novel water-soluble tablets |
| Location: | Netherlands |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.ijpharm.2023.123286 |
| Publisher version: | https://doi.org/10.1016/j.ijpharm.2023.123286 |
| Language: | English |
| Additional information: | © 2023 The Authors. Published by Elsevier B.V. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | 3D printed drug products and printlets, Biocompatibility and safety of 3D printed devices, Clinical translation of printed medicines, Personalized pharmaceuticals, Printing formulations and drug delivery systems, Vat photopolymerization additive manufacturing |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Life Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Life Sciences > UCL School of Pharmacy UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Life Sciences > UCL School of Pharmacy > Pharmaceutics |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10175311 |
