Ma, S;
Shang, Z;
Shang, A;
Zhang, P;
Tang, C;
Huang, Y;
Leung, CLA;
... Wang, X; + view all
(2023)
Additive manufacturing enabled synergetic strengthening of bimodal reinforcing particles for aluminum matrix composites.
Additive Manufacturing
, 70
, Article 103543. 10.1016/j.addma.2023.103543.
Preview |
Text
Leung_Manuscript_for_Addit Manufac_revised Clean version.pdf Download (1MB) | Preview |
Abstract

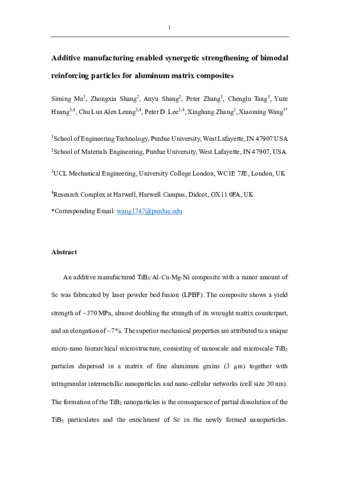

An additive manufactured TiB2/Al-Cu-Mg-Ni composite with a minor amount of Sc was fabricated by laser powder bed fusion (LPBF). The composite shows a yield strength of ∼370 MPa, almost doubling the strength of its wrought matrix counterpart, and an elongation of ∼7 %. The superior mechanical properties are attributed to a unique micro-nano hierarchical microstructure, consisting of nanoscale and microscale TiB2 particles dispersed in a matrix of fine aluminum grains (3 µm) together with intragranular intermetallic nanoparticles and nano-cellular networks (cell size 30 nm). The formation of the TiB2 nanoparticles is the consequence of partial dissolution of the TiB2 particulates and the enrichment of Sc in the newly formed nanoparticles. Remarkable strengthening effects are achieved by the bimodal TiB2 particles, intermetallic nanoparticles and intragranular nano-cellular networks. This study provides new insights into the role of additive manufacturing in tailoring the microstructure of particulate reinforced metal matrix composites (MMCs) with advanced properties.
| Type: | Article |
|---|---|
| Title: | Additive manufacturing enabled synergetic strengthening of bimodal reinforcing particles for aluminum matrix composites |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.addma.2023.103543 |
| Publisher version: | https://doi.org/10.1016/j.addma.2023.103543 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Additive manufacturing, Metal matrix composite, TiB2/Al, Al-Sc, Al2618 |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10171144 |
Archive Staff Only
 |
View Item |
