Pineda, Miguel;
Phan, Anh;
Koh, Carolyn Ann;
Striolo, Alberto;
Stamatakis, Michail;
(2023)

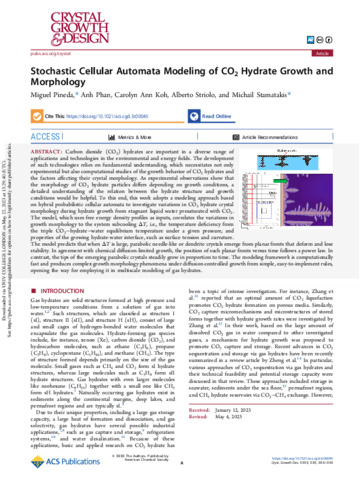

Stochastic Cellular Automata Modeling of CO2 Hydrate Growth and Morphology.
Crystal Growth & Design
10.1021/acs.cgd.3c00045.
(In press).
Preview |
PDF
Striolo_Stochastic Cellular Automata Modeling_AOP.pdf - Published Version Download (7MB) | Preview |
Abstract
Carbon dioxide (CO2) hydrates are important in a diverse range of applications and technologies in the environmental and energy fields. The development of such technologies relies on fundamental understanding, which necessitates not only experimental but also computational studies of the growth behavior of CO2 hydrates and the factors affecting their crystal morphology. As experimental observations show that the morphology of CO2 hydrate particles differs depending on growth conditions, a detailed understanding of the relation between the hydrate structure and growth conditions would be helpful. To this end, this work adopts a modeling approach based on hybrid probabilistic cellular automata to investigate variations in CO2 hydrate crystal morphology during hydrate growth from stagnant liquid water presaturated with CO2. The model, which uses free energy density profiles as inputs, correlates the variations in growth morphology to the system subcooling ΔT, i.e., the temperature deficiency from the triple CO2–hydrate–water equilibrium temperature under a given pressure, and properties of the growing hydrate-water interface, such as surface tension and curvature. The model predicts that when ΔT is large, parabolic needle-like or dendrite crystals emerge from planar fronts that deform and lose stability. In agreement with chemical diffusion-limited growth, the position of such planar fronts versus time follows a power law. In contrast, the tips of the emerging parabolic crystals steadily grow in proportion to time. The modeling framework is computationally fast and produces complex growth morphology phenomena under diffusion-controlled growth from simple, easy-to-implement rules, opening the way for employing it in multiscale modeling of gas hydrates.
| Type: | Article |
|---|---|
| Title: | Stochastic Cellular Automata Modeling of CO2 Hydrate Growth and Morphology |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1021/acs.cgd.3c00045 |
| Publisher version: | http://doi.org/10.1021/acs.cgd.3c00045 |
| Language: | English |
| Additional information: | © 2023 The Authors. Published by American Chemical Society. The work is licensed under the terms of the Creative Commons Attribution 4.0 International (CC BY 4.0) Licence (https://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Crystallization, Interfaces, Morphology, Solvates, Water |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10170519 |
