Heenan, TMM;
Mombrini, I;
Llewellyn, A;
Checchia, S;
Tan, C;
Johnson, MJ;
Jnawali, A;
... Shearing, PR; + view all
(2023)
Mapping internal temperatures during high-rate battery applications.
Nature
, 617
(7961)
pp. 507-512.
10.1038/s41586-023-05913-z.
Preview |
Text

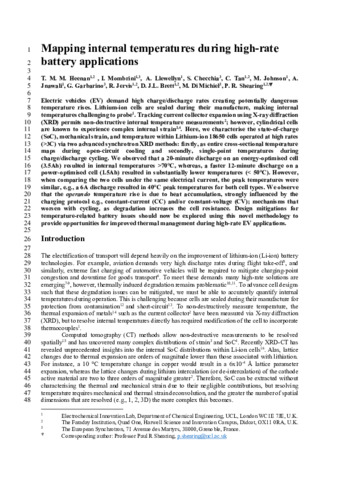

Shearing_RPS Nature Heenan - Article - 13 Feb 2023.pdf Download (1MB) | Preview |
Abstract
Electric vehicles demand high charge and discharge rates creating potentially dangerous temperature rises. Lithium-ion cells are sealed during their manufacture, making internal temperatures challenging to probe1. Tracking current collector expansion using X-ray diffraction (XRD) permits non-destructive internal temperature measurements2; however, cylindrical cells are known to experience complex internal strain3,4. Here, we characterize the state of charge, mechanical strain and temperature within lithium-ion 18650 cells operated at high rates (above 3C) by means of two advanced synchrotron XRD methods: first, as entire cross-sectional temperature maps during open-circuit cooling and second, single-point temperatures during charge–discharge cycling. We observed that a 20-minute discharge on an energy-optimized cell (3.5 Ah) resulted in internal temperatures above 70 °C, whereas a faster 12-minute discharge on a power-optimized cell (1.5 Ah) resulted in substantially lower temperatures (below 50 °C). However, when comparing the two cells under the same electrical current, the peak temperatures were similar, for example, a 6 A discharge resulted in 40 °C peak temperatures for both cell types. We observe that the operando temperature rise is due to heat accumulation, strongly influenced by the charging protocol, for example, constant current and/or constant voltage; mechanisms that worsen with cycling because degradation increases the cell resistance. Design mitigations for temperature-related battery issues should now be explored using this new methodology to provide opportunities for improved thermal management during high-rate electric vehicle applications.
| Type: | Article |
|---|---|
| Title: | Mapping internal temperatures during high-rate battery applications |
| Location: | England |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1038/s41586-023-05913-z |
| Publisher version: | https://doi.org/10.1038/s41586-023-05913-z |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Batteries, Chemical engineering |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10170460 |
