Chen, X;
Jiang, D;
Demosthenous, A;
(2022)
Highly Efficient Smart 3-Coil Wireless Power Transfer System with Automatic Tracking.
In:
Proceedigns of the 29th IEEE International Conference on Electronics, Circuits and Systems (ICECS) 2022.
Institute of Electrical and Electronics Engineers (IEEE)
Preview |
Text

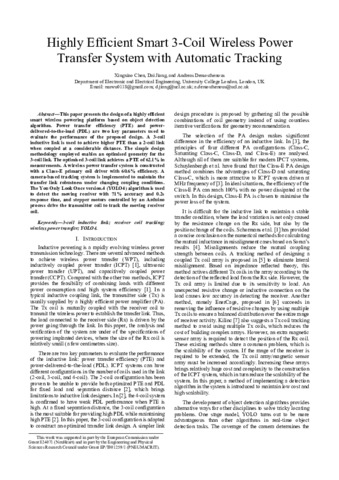

Highly_Efficient_Smart_3-Coil_Wireless_Power_Transfer_System_with_Automatic_Tracking.pdf - Accepted Version Download (749kB) | Preview |
Abstract
This paper presents the design of a highly efficient smart wireless powering platform based on object detection algorithm. Power transfer efficiency (PTE) and power-delivered-to-the-load (PDL) are two key parameters used to evaluate the performance of the proposed design. A 3-coil inductive link is used to achieve higher PTE than a 2-coil link when coupled at a considerable distance. The simple design methodology employed enables an optimised geometry for the 3-coil link. The optimised 3-coil link achieves a PTE of 62.1% in measurements. A wireless power transfer system is constructed with a Class-E primary coil driver with 60.6% efficiency. A camera-based tracking system is implemented to maintain the transfer link robustness under changing coupling conditions. The You Only Look Once version.4 (YOLO4) algorithm is used to detect the moving receiver with 71% accuracy and 0.2s response time, and stepper motors controlled by an Arduino process drive the transmitter coil to track the moving receiver coil.
| Type: | Proceedings paper |
|---|---|
| Title: | Highly Efficient Smart 3-Coil Wireless Power Transfer System with Automatic Tracking |
| Event: | ICECS 2022 - 29th IEEE International Conference on Electronics, Circuits and Systems |
| Location: | Glasgow, Scotland |
| Dates: | 24th-26th October 2022 |
| ISBN-13: | 978-1-6654-8823-5 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/ICECS202256217.2022.9970817 |
| Publisher version: | https://doi.org/10.1109/ICECS202256217.2022.997081... |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher's terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10164295 |
