Morrisset, David;
Hadden, Rory M;
Law, Angus;
Torero, Jose L;
(2023)
Downward flame spread over PMMA spheres.
Proceedings of the Combustion Institute
, 39
(3)
pp. 4155-4164.
10.1016/j.proci.2022.07.220.
Preview |
Text

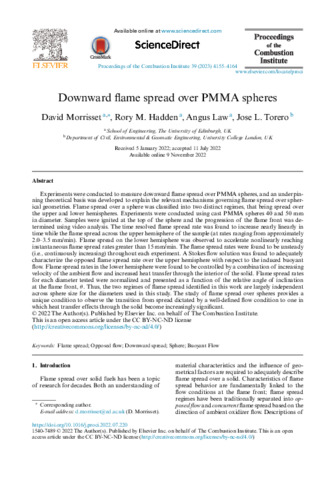

Torero Cullen_Downward flame spread over PMMA spheres.pdf Download (1MB) | Preview |
Abstract
Experiments were conducted to measure downward flame spread over PMMA spheres, and an underpinning theoretical basis was developed to explain the relevant mechanisms governing flame spread over spherical geometries. Flame spread over a sphere was classified into two distinct regimes, that being spread over the upper and lower hemispheres. Experiments were conducted using cast PMMA spheres 40 and 50 mm in diameter. Samples were ignited at the top of the sphere and the progression of the flame front was determined using video analysis. The time resolved flame spread rate was found to increase nearly linearly in time while the flame spread across the upper hemisphere of the sample (at rates ranging from approximately 2.0–3.5 mm/min). Flame spread on the lower hemisphere was observed to accelerate nonlinearly reaching instantaneous flame spread rates greater than 15 mm/min. The flame spread rates were found to be unsteady (i.e., continuously increasing) throughout each experiment. A Stokes flow solution was found to adequately characterize the opposed flame spread rate over the upper hemisphere with respect to the induced buoyant flow. Flame spread rates in the lower hemisphere were found to be controlled by a combination of increasing velocity of the ambient flow and increased heat transfer through the interior of the solid. Flame spread rates for each diameter tested were normalized and presented as a function of the relative angle of inclination at the flame front, . Thus, the two regimes of flame spread identified in this work are largely independent across sphere size for the diameters used in this study. The study of flame spread over spheres provides a unique condition to observe the transition from spread dictated by a well-defined flow condition to one in which heat transfer effects through the solid become increasingly significant.
| Type: | Article |
|---|---|
| Title: | Downward flame spread over PMMA spheres |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.proci.2022.07.220 |
| Publisher version: | https://doi.org/10.1016/j.proci.2022.07.220 |
| Language: | English |
| Additional information: | Copyright © 2022 The Author(s). Published by Elsevier Inc. on behalf of The Combustion Institute. This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/). |
| Keywords: | Flame spread, Opposed flow, Downward spread, Sphere, Buoyant Flow |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Civil, Environ and Geomatic Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10159812 |
