Li, Lele;
Li, Dongliang;
Sun, Baojie;
Zhou, Yanfen;
Ma, Jianwei;
Chen, Shaojuan;
Jiang, Liang;
(2022)
Styrene-ethylene-butadiene-styrene copolymer/carbon nanotubes composite fiber based strain sensor with wide sensing range and high linearity for human motion detection.
Journal of Industrial Textiles
, 52
pp. 1-14.
10.1177/15280837221121971.
Preview |
Text

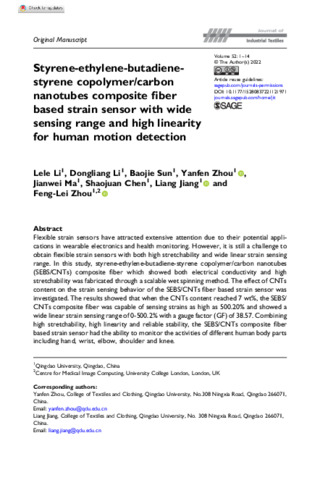

Zhou_Styrene-ethylene-butadiene-styrene copolymer_VoR.pdf - Published Version Download (2MB) | Preview |
Abstract
Flexible strain sensors have attracted extensive attention due to their potential applications in wearable electronics and health monitoring. However, it is still a challenge to obtain flexible strain sensors with both high stretchability and wide linear strain sensing range. In this study, styrene-ethylene-butadiene-styrene copolymer/carbon nanotubes (SEBS/CNTs) composite fiber which showed both electrical conductivity and high stretchability was fabricated through a scalable wet spinning method. The effect of CNTs content on the strain sensing behavior of the SEBS/CNTs fiber based strain sensor was investigated. The results showed that when the CNTs content reached 7 wt%, the SEBS/CNTs composite fiber was capable of sensing strains as high as 500.20% and showed a wide linear strain sensing range of 0-500.2% with a gauge factor (GF) of 38.57. Combining high stretchability, high linearity and reliable stability, the SEBS/CNTs composite fiber based strain sensor had the ability to monitor the activities of different human body parts including hand, wrist, elbow, shoulder and knee.
| Type: | Article |
|---|---|
| Title: | Styrene-ethylene-butadiene-styrene copolymer/carbon nanotubes composite fiber based strain sensor with wide sensing range and high linearity for human motion detection |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1177/15280837221121971 |
| Publisher version: | https://doi.org/10.1177/15280837221121971 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License. The images or other third-party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc/4.0/ |
| Keywords: | Fiber, electrically conductive, strain sensing |
| UCL classification: | UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng UCL > Provost and Vice Provost Offices > UCL BEAMS UCL |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10156344 |
