An integrated circuit to enable electrodeposition and amperometric readout of sensing electrodes

Li, M; Vanhoestenberghe, A; Ghoreishizadeh, SS; (2022) An integrated circuit to enable electrodeposition and amperometric readout of sensing electrodes. In: Proceedings of the 2022 IEEE 13th Latin America Symposium on Circuits and System (LASCAS). IEEE: Puerto Varas, Chile. Green open access

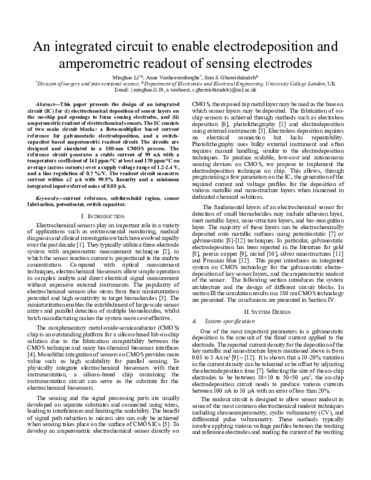

[thumbnail of LASCAS-V8-Minghao.pdf]
Preview
Text
LASCAS-V8-Minghao.pdf - Accepted Version

Download (487kB) | Preview

Abstract

This paper presents the design of an integrated circuit (IC) for (i) electrochemical deposition of sensor layers on the on-chip pad openings to form sensing electrodes, and (ii) amperometric readout of electrochemical sensors. The IC consists of two main circuit blocks: a Beta-multiplier based current reference for galvanostatic electrodeposition, and a switch-capacitor based amperometric readout circuit. The circuits are designed and simulated in a 180-nm CMOS process. The reference circuit generates a stable current of 99 nA with a temperature coefficient of 141 ppm/°C at best and 170 ppm/°C on average (across corners) over a supply voltage range of 1.2-2.4 V, and a line regulation of 0.7 %/V. The readout circuit measures current within pm 2 mu mathrmA with 99.9% linearity and a minimum integrated input-referred noise of 0.88 pA.

Type: Proceedings paper
Title: An integrated circuit to enable electrodeposition and amperometric readout of sensing electrodes
Event: 2022 IEEE 13th Latin America Symposium on Circuits and System (LASCAS)
Dates: 1 Mar 2022 - 4 Mar 2022
ISBN-13: 978-1-6654-2008-2
Open access status: An open access version is available from UCL Discovery
DOI: 10.1109/LASCAS53948.2022.9789069
Publisher version: https://doi.org/10.1109/LASCAS53948.2022.9789069
Language: English
Additional information: This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: current reference, subthreshold region, sensor fabrication, potentiostat, switch capacitor
