Di Vece, Chiara;
Dromey, Brian;
Vasconcelos, Francisco;
David, Anna L;
Peebles, Donald;
Stoyanov, Danail;
(2022)
Deep learning-based plane pose regression in obstetric ultrasound.
International Journal of Computer Assisted Radiology and Surgery
10.1007/s11548-022-02609-z.
(In press).
Preview |
Text

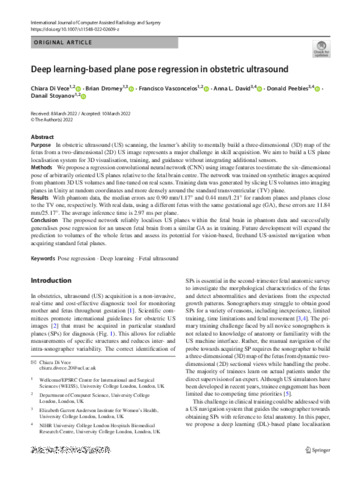

Di Vece_DiVece2022_Article_DeepLearning-basedPlanePoseReg.pdf Download (1MB) | Preview |
Abstract
PURPOSE: In obstetric ultrasound (US) scanning, the learner's ability to mentally build a three-dimensional (3D) map of the fetus from a two-dimensional (2D) US image represents a major challenge in skill acquisition. We aim to build a US plane localisation system for 3D visualisation, training, and guidance without integrating additional sensors. METHODS: We propose a regression convolutional neural network (CNN) using image features to estimate the six-dimensional pose of arbitrarily oriented US planes relative to the fetal brain centre. The network was trained on synthetic images acquired from phantom 3D US volumes and fine-tuned on real scans. Training data was generated by slicing US volumes into imaging planes in Unity at random coordinates and more densely around the standard transventricular (TV) plane. RESULTS: With phantom data, the median errors are 0.90 mm/1.17[Formula: see text] and 0.44 mm/1.21[Formula: see text] for random planes and planes close to the TV one, respectively. With real data, using a different fetus with the same gestational age (GA), these errors are 11.84 mm/25.17[Formula: see text]. The average inference time is 2.97 ms per plane. CONCLUSION: The proposed network reliably localises US planes within the fetal brain in phantom data and successfully generalises pose regression for an unseen fetal brain from a similar GA as in training. Future development will expand the prediction to volumes of the whole fetus and assess its potential for vision-based, freehand US-assisted navigation when acquiring standard fetal planes.
| Type: | Article |
|---|---|
| Title: | Deep learning-based plane pose regression in obstetric ultrasound |
| Location: | Germany |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1007/s11548-022-02609-z |
| Publisher version: | https://doi.org/10.1007/s11548-022-02609-z |
| Language: | English |
| Additional information: | This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. |
| Keywords: | Deep learning, Fetal ultrasound, Pose regression |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL EGA Institute for Womens Health > Maternal and Fetal Medicine UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL EGA Institute for Womens Health UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Computer Science UCL > Provost and Vice Provost Offices > UCL BEAMS |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10147820 |
