Bhattarai, Santosh;
Ziebart, Marek;
Springer, Tim;
Gonzalez, Francisco;
Tobias, Guillermo;
(2022)

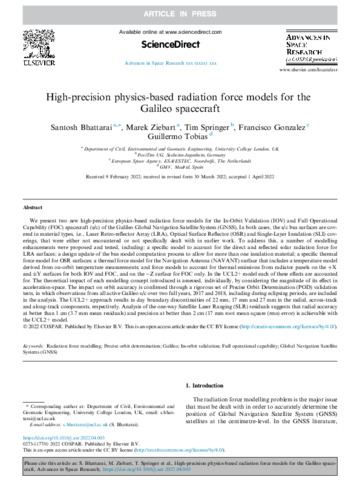

High-precision physics-based radiation force models for the Galileo spacecraft.
Advances in Space Research
10.1016/j.asr.2022.04.003.
(In press).
Preview |
Text
1-s2.0-S0273117722002538-main.pdf - Published Version Download (1MB) | Preview |
Abstract
We present two new high-precision physics-based radiation force models for the In-Orbit Validation (IOV) and Full Operational Capability (FOC) spacecraft (s/c) of the Galileo Global Navigation Satellite System (GNSS). In both cases, the s/c bus surfaces are covered in material types, i.e., Laser Retro-reflector Array (LRA), Optical Surface Reflector (OSR) and Single-Layer Insulation (SLI) coverings, that were either not encountered or not specifically dealt with in earlier work. To address this, a number of modelling enhancements were proposed and tested, including: a specific model to account for the direct and reflected solar radiation force for LRA surfaces; a design update of the bus model computation process to allow for more than one insulation material; a specific thermal force model for OSR surfaces; a thermal force model for the Navigation Antenna (NAVANT) surface that includes a temperature model derived from on-orbit temperature measurements; and force models to account for thermal emissions from radiator panels on the +X and \pm Y surfaces for both IOV and FOC, and on the -Z surface for FOC only. In the UCL2+ model each of these effects are accounted for. The theoretical impact of each modelling concept introduced is assessed, individually, by considering the magnitude of its effect in acceleration-space. The impact on orbit accuracy is confirmed through a rigorous set of Precise Orbit Determination (POD) validation tests, in which observations from all active Galileo s/c over two full years, 2017 and 2018, including during eclipsing periods, are included in the analysis. The UCL2+ approach results in day boundary discontinuities of 22 mm, 17 mm and 27 mm in the radial, across-track and along-track components, respectively. Analysis of the one-way Satellite Laser Ranging (SLR) residuals suggests that radial accuracy at better than 1 cm (3.7 mm mean residuals) and precision at better than 2 cm (17 mm root mean square (rms) error) is achievable with the UCL2+ model.
| Type: | Article |
|---|---|
| Title: | High-precision physics-based radiation force models for the Galileo spacecraft |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.asr.2022.04.003 |
| Publisher version: | https://doi.org/10.1016/j.asr.2022.04.003 |
| Language: | English |
| Additional information: | © 2022 COSPAR. Published by Elsevier B.V. under a Creative Commons license (https://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Radiation force modelling, Precise orbit determination, GalileoIn-orbit validation, Full operational capability, Global Navigation Satellite Systems (GNSS) |
| UCL classification: | UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Civil, Environ and Geomatic Eng UCL > Provost and Vice Provost Offices > UCL BEAMS UCL |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10147518 |
