Baker, C;
Xochicale, M;
Joubert, F;
Lin, F-Y;
Mathews, S;
Shakir, DI;
Ourselin, S;
... Xia, W; + view all
(2021)
Real-Time Ultrasonic Tracking of an Intraoperative Needle Tip with Integrated Fibre-Optic Hydrophone.
In:
2021 IEEE International Ultrasonics Symposium (IUS).
IEEE: Xi'an, China.
Preview |
Text

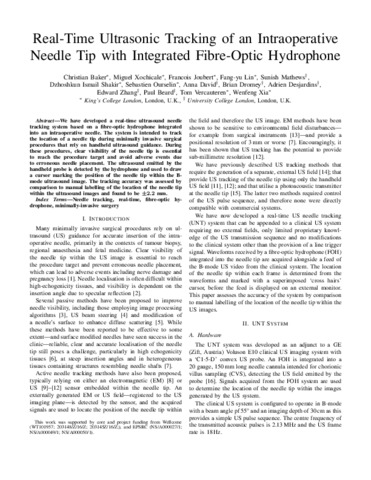

crnb_ieee_ius_2021_main.pdf - Accepted Version Download (351kB) | Preview |
Abstract
We have developed a real-time ultrasound needle tracking system based on a fibre-optic hydrophone integrated into an intraoperative needle. The system is intended to track the location of a needle tip during minimally invasive surgical procedures that rely on handheld ultrasound guidance. During these procedures, clear visibility of the needle tip is essential to reach the procedure target and avoid adverse events due to erroneous needle placement. The ultrasound emitted by the handheld probe is detected by the hydrophone and used to draw a cursor marking the position of the needle tip within the B-mode ultrasound image. The tracking accuracy was assessed by comparison to manual labelling of the location of the needle tip within the ultrasound images and found to be ±2.2 mm.
| Type: | Proceedings paper |
|---|---|
| Title: | Real-Time Ultrasonic Tracking of an Intraoperative Needle Tip with Integrated Fibre-Optic Hydrophone |
| Event: | 2021 IEEE International Ultrasonics Symposium (IUS) |
| Location: | Xi'an, China |
| Dates: | 11 September 2021 - 16 September 2021 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/ius52206.2021.9593381 |
| Publisher version: | https://doi.org/10.1109/IUS52206.2021.9593381 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Ultrasonic imaging, Target tracking, Minimally invasive surgery, Sonar equipment, Manuals, Needles, Real-time systems |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10142193 |
