Bodie, CS;
Lioliou, G;
Lefeuvre, G;
Barnett, AM;
(2022)
Electron spectroscopy with a diamond detector.
Applied Radiation and Isotopes
, 180
, Article 110027. 10.1016/j.apradiso.2021.110027.
Preview |
Text

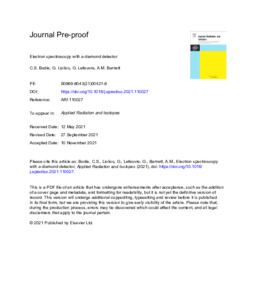

1-s2.0-S0969804321004218-main.pdf - Accepted Version Download (1MB) | Preview |
Abstract
An electronic grade single crystal chemical vapour deposition diamond was investigated as a prototype high temperature spectroscopic electron (β− particle) detector for future space science instruments. The diamond detector was coupled to a custom-built charge-sensitive preamplifier of low noise. A63Ni radioisotope source (endpoint energy 66 keV) was used to provide a spectrum of β− particles incident on the detector. The operating temperature of the detector/preamplifier assembly was controlled to allow its performance to be investigated between +100 °C and −20 °C, in 20 °C steps. Monte Carlo modelling was used to: a) calculate the β− particle spectrum incident on the detector; b) calculate the fraction of β− particle energy deposited into the detector; and c) predict the β− particle spectrum accumulated by the instrument. Comparison between the model and experimental data suggested that there was a 4.5 μm thick recombination region at the front of the detector. The spectrometer was demonstrated to be fully operable at temperatures, T, −20 °C ≤ T ≤ 80 °C; the results suggested that some form of polarisation phenomenon occurred in the detector at > 80 °C. This article presents the first report of an energy calibrated (≲ 50 keV) spectroscopic β− particle diamond detector.
| Type: | Article |
|---|---|
| Title: | Electron spectroscopy with a diamond detector |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.apradiso.2021.110027 |
| Publisher version: | https://doi.org/10.1016/j.apradiso.2021.110027 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Radiation detectors, Electron spectrometers |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10139420 |
