Cohen, Yuval;
(2021)
Radio-frequency atomic magnetometry with a rubidium Bose-Einstein condensate.
Doctoral thesis (Ph.D), UCL (University College London).
Preview |
Text

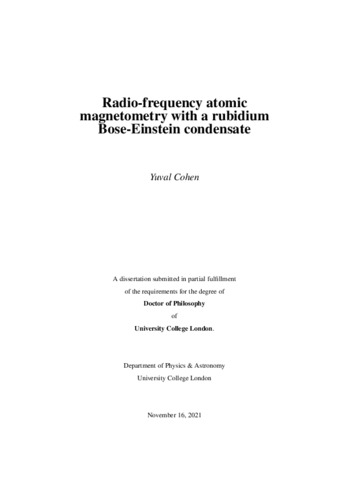

Yuval_Cohen_18001544_Thesis.pdf - Accepted Version Download (6MB) | Preview |
Abstract
This thesis details progress in radio-frequency atomic magnetometry with ultracold rubidium atoms. Motivations and context are first covered, before an introduction of the main concepts required to understand the underlying physics is given. At first, a cold atom magnetometer is designed, built and characterised. Consistent 20 µK atoms are produced. Radio-frequency (RF) atomic magnetometry (AM) is performed by placing the atoms in a bias magnetic field and generating coherent precession with an external AC field. A noise floor at 330 pT/√Hz defines the sensor’s sensitivity, with a range of applications. RF-AM is then performed with a Bose-Einstein condensate (BEC). The 20 µK atoms are loaded into a magnetic trap, where RF evaporation increases their phase space density (PSD = nλ^3dB, n is the density and λdB is the thermal de Broglie wavelength of the atoms). Next, atoms are transferred into a hybrid dipole trap, collecting in a dimple created at the intersect of two high power laser beams. Production and stabilisation of these beams is described, which are focused down to a 75 µm beam waist at the trap position with a total power of 7 W. Optimisation of the evaporation process in both traps leads to consistent BEC production. A pure condensate with 4x10^4 atoms at 25 nK is reported. Radio-frequency magnetometry is performed at various probe volumes. With systematic optimisation a best AC sensitivity of 24 pT/√Hz with 3.4 × 10^8 atoms in the magnetic trap before evaporation is achieved. This is extended to the BEC with 4 × 10^4 atoms, where an AC sensitivity of 84 nT/√Hz and DC sensitivity of 14 nT/√Hz is reported, bringing previously achieved atomic magnetometry into the micrometer regime. A trade-off must be considered due to reduction in sensitivity at lower probe volumes. Volumes between 1.4×10−7 m^3 and 1.6×10−14 m^3 can be accessed, highlighting the sensors adaptability and tunability for different applications. The results are contextualised in the background of previously achieved magnetometers of various types. Finally, proof-of-concept electromagnetic induction imaging (EMI) measurements are made to confirm the sensor’s viability for high resolution imaging.
| Type: | Thesis (Doctoral) |
|---|---|
| Qualification: | Ph.D |
| Title: | Radio-frequency atomic magnetometry with a rubidium Bose-Einstein condensate |
| Event: | UCL (University College London) |
| Open access status: | An open access version is available from UCL Discovery |
| Language: | English |
| Additional information: | Copyright © The Author 2021. Original content in this thesis is licensed under the terms of the Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) Licence (https://creativecommons.org/licenses/by-nc/4.0/). Any third-party copyright material present remains the property of its respective owner(s) and is licensed under its existing terms. Access may initially be restricted at the author’s request. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10138731 |
