Biroun, MH;
Haworth, L;
Agrawal, P;
Orme, B;
McHale, G;
Torun, H;
Rahmati, M;
(2021)
Surface Acoustic Waves to Control Droplet Impact onto Superhydrophobic and Slippery Liquid-Infused Porous Surfaces.
ACS Applied Materials and Interfaces
, 13
(38)
pp. 46076-46087.
10.1021/acsami.1c09217.
Preview |
Text

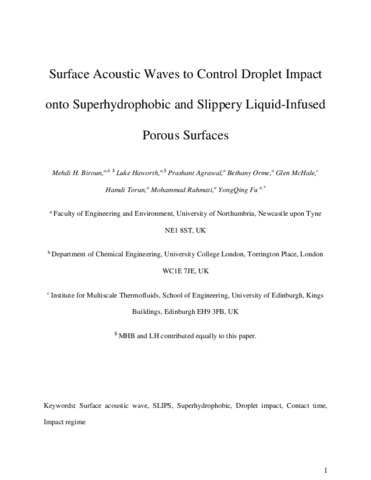

Biroun_Droplet impact control on slippery liquid infused porous surfaces Final.pdf - Accepted Version Download (1MB) | Preview |
Abstract
Superhydrophobic coatings and slippery liquid-infused porous surfaces (SLIPS) have shown their potentials in self-cleaning, anti-icing, anti-erosion, and antibiofouling applications. Various studies have been done on controlling the droplet impact on such surfaces using passive methods such as modifying the lubricant layer thickness in SLIPS. Despite their effectiveness, passive methods lack on-demand control over the impact dynamics of droplets. This paper introduces a new method to actively control the droplet impact onto superhydrophobic and SLIPS surfaces using surface acoustic waves (SAWs). In this study, we designed and fabricated SLIPS on ZnO/aluminum thin-film SAW devices and investigated different scenarios of droplet impact on the surfaces compared to those on similar superhydrophobic-coated surfaces. Our results showed that SAWs have insignificant influences on the impact dynamics of a porous and superhydrophobic surface without an infused oil layer. However, after infusion with oil, SAW energy could be effectively transferred to the droplet, thus modifying its impact dynamics onto the superhydrophobic surface. Results showed that by applying SAWs, the spreading and retraction behaviors of the droplets are altered on the SLIPS surface, leading to a change in a droplet impact regime from deposition to complete rebound with altered rebounding angles. Moreover, the contact time was reduced up to 30% when applying SAWs on surfaces with an optimum oil lubricant thickness of ∼8 μm. Our work offers an effective way of applying SAW technology along with SLIPS to effectively reduce the contact time and alter the droplet rebound angles.
| Type: | Article |
|---|---|
| Title: | Surface Acoustic Waves to Control Droplet Impact onto Superhydrophobic and Slippery Liquid-Infused Porous Surfaces |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1021/acsami.1c09217 |
| Publisher version: | http://dx.doi.org/10.1021/acsami.1c09217 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | surface acoustic wave, SLIPS, superhydrophobic, droplet impact, contact time, impact regime, DYNAMICS, EVAPORATION, DEPOSITION, FLOW |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10137405 |
