Inverted organic photovoltaics with a solution-processed ZnO/MgO electron transport bilayer

Ierides, I; Squires, I; Lucarelli, G; Brown, TM; Cacialli, F; (2021) Inverted organic photovoltaics with a solution-processed ZnO/MgO electron transport bilayer. Journal of Materials Chemistry C 10.1039/d0tc04955g. (In press). Green open access

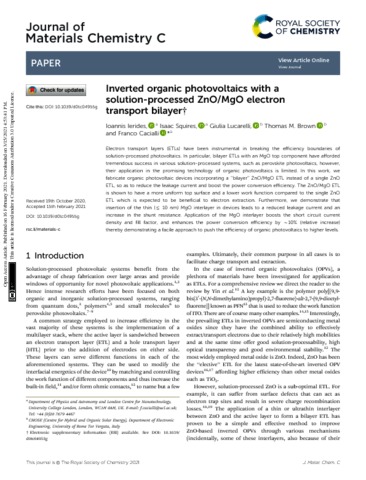

[thumbnail of Cacialli_Inverted organic photovoltaics with a solution-processed ZnO:MgO electron transport bilayer_AOP.pdf]
Preview
Text
Cacialli_Inverted organic photovoltaics with a solution-processed ZnO:MgO electron transport bilayer_AOP.pdf - Published Version

Download (3MB) | Preview

Abstract

Electron transport layers (ETLs) have been instrumental in breaking the efficiency boundaries of solution-processed photovoltaics. In particular, bilayer ETLs with an MgO top component have afforded tremendous success in various solution-processed systems, such as perovskite photovoltaics, however, their application in the promising technology of organic photovoltaics is limited. In this work, we fabricate organic photovoltaic devices incorporating a “bilayer” ZnO/MgO ETL instead of a single ZnO ETL, so as to reduce the leakage current and boost the power conversion efficiency. The ZnO/MgO ETL is shown to have a more uniform top surface and a lower work function compared to the single ZnO ETL which is expected to be beneficial to electron extraction. Furthermore, we demonstrate that insertion of the thin (≲ 10 nm) MgO interlayer in devices leads to a reduced leakage current and an increase in the shunt resistance. Application of the MgO interlayer boosts the short circuit current density and fill factor, and enhances the power conversion efficiency by ∼10% (relative increase) thereby demonstrating a facile approach to push the efficiency of organic photovoltaics to higher levels.

Type: Article
Title: Inverted organic photovoltaics with a solution-processed ZnO/MgO electron transport bilayer
Open access status: An open access version is available from UCL Discovery
DOI: 10.1039/d0tc04955g
Publisher version: https://doi.org/10.1039/d0tc04955g
Language: English
Additional information: This article is licensed under a Creative Commons Attribution 3.0 Unported Licence (http://creativecommons.org/licenses/by/3.0/).
UCL classification: UCL
UCL > Provost and Vice Provost Offices > UCL BEAMS
UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences
UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy
URI: https://discovery.ucl.ac.uk/id/eprint/10124190
