McCallum, N;
Thomas, DB;
Brown, ML;
Tessore, N;
(2021)
Spin characterization of systematics in CMB surveys – a comprehensive formalism.
Monthly Notices of the Royal Astronomical Society
, 501
(1)
pp. 802-832.
10.1093/mnras/staa3609.
Preview |
Text

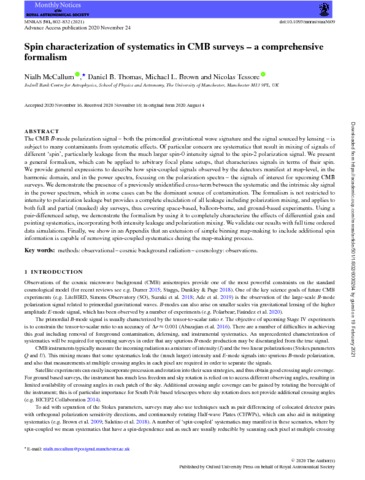

Tessore_staa3609_VoR.pdf - Published Version Download (5MB) | Preview |
Abstract
The CMB B-mode polarization signal – both the primordial gravitational wave signature and the signal sourced by lensing – is subject to many contaminants from systematic effects. Of particular concern are systematics that result in mixing of signals of different ‘spin’, particularly leakage from the much larger spin-0 intensity signal to the spin-2 polarization signal. We present a general formalism, which can be applied to arbitrary focal plane setups, that characterizes signals in terms of their spin. We provide general expressions to describe how spin-coupled signals observed by the detectors manifest at map-level, in the harmonic domain, and in the power spectra, focusing on the polarization spectra – the signals of interest for upcoming CMB surveys. We demonstrate the presence of a previously unidentified cross-term between the systematic and the intrinsic sky signal in the power spectrum, which in some cases can be the dominant source of contamination. The formalism is not restricted to intensity to polarization leakage but provides a complete elucidation of all leakage including polarization mixing, and applies to both full and partial (masked) sky surveys, thus covering space-based, balloon-borne, and ground-based experiments. Using a pair-differenced setup, we demonstrate the formalism by using it to completely characterize the effects of differential gain and pointing systematics, incorporating both intensity leakage and polarization mixing. We validate our results with full time ordered data simulations. Finally, we show in an Appendix that an extension of simple binning map-making to include additional spin information is capable of removing spin-coupled systematics during the map-making process.
Type: | Article |
---|---|
Title: | Spin characterization of systematics in CMB surveys – a comprehensive formalism |
Open access status: | An open access version is available from UCL Discovery |
DOI: | 10.1093/mnras/staa3609 |
Publisher version: | https://doi.org/10.1093/mnras/staa3609 |
Language: | English |
Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
Keywords: | methods: observational, cosmic background radiation, cosmology: observations |
UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
URI: | https://discovery.ucl.ac.uk/id/eprint/10116385 |
