Colchester, RJ;
Noimark, S;
Zhang, EZ;
Beard, PC;
Desjardins, AE;
(2018)
Dual-Modality All-Optical Ultrasound and Photoacoustic Imaging Using Permanent Marker Ink.
In:
2018 IEEE International Ultrasonics Symposium (IUS).
IEEE: Kobe, Japan.
Preview |
Text

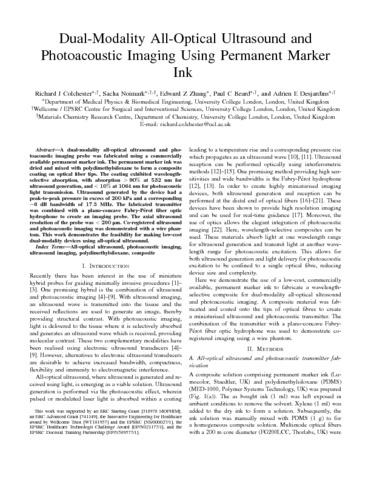

Colchester_Permanent_Ink.pdf - Accepted Version Download (1MB) | Preview |
Abstract
A dual-modality all-optical ultrasound and photo to acoustic imaging probe was fabricated using a commercially available permanent marker ink. The permanent marker ink was dried and mixed with polydimethylsiloxane to form a composite coating on optical fiber tips. The coating exhibited wavelength-selective absorption, with absorption > 90% at 532 nm for ultrasound generation, and <; 10% at 1064 nm for photoacoustic light transmission. Ultrasound generated by the device had a peak-to-peak pressure in excess of 200 kPa and a corresponding -6 dB bandwidth of 17.3 MHz. The fabricated transmitter was combined with a plano-concave Fabry-Perot fiber optic hydrophone to create an imaging probe. The axial ultrasound resolution of the probe was <; 200 μm. Co-registered ultrasound and photoacoustic imaging was demonstrated with a wire phantom. This work demonstrates the feasibility for making low-cost dual-modality devices using all-optical ultrasound.
| Type: | Proceedings paper |
|---|---|
| Title: | Dual-Modality All-Optical Ultrasound and Photoacoustic Imaging Using Permanent Marker Ink |
| Event: | 2018 IEEE International Ultrasonics Symposium (IUS) |
| Location: | Kobe, Japan |
| Dates: | 22-25 Oct. 2018 |
| ISBN-13: | 9781538634257 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/ULTSYM.2018.8579904 |
| Publisher version: | https://doi.org/10.1109/ULTSYM.2018.8579904 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | All-optical ultrasound, photoacoustic imaging, ultrasound imaging, polydimethylsiloxane, composite |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10068913 |
