Effect of stirring rate on the morphology of FDU-12 mesoporous silica particles

Meoto, S; Kent, N; Nigra, MM; Coppens, MO; (2017) Effect of stirring rate on the morphology of FDU-12 mesoporous silica particles. Microporous and Mesoporous Materials , 249 pp. 61-66. 10.1016/j.micromeso.2017.04.045. Green open access

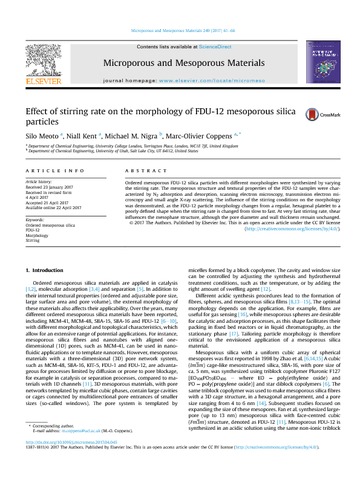

[thumbnail of 1-s2.0-S1387181117302949-main.pdf]
Preview
Text
1-s2.0-S1387181117302949-main.pdf - Published Version

Download (1MB) | Preview

Abstract

Ordered mesoporous FDU-12 silica particles with different morphologies were synthesized by varying the stirring rate. The mesoporous structure and textural properties of the FDU-12 samples were characterized by N2 adsorption and desorption, scanning electron microscopy, transmission electron microscopy and small angle X-ray scattering. The influence of the stirring conditions on the morphology was demonstrated, as the FDU-12 particle morphology changes from a regular, hexagonal platelet to a poorly defined shape when the stirring rate is changed from slow to fast. At very fast stirring rate, shear influences the mesophase structure, although the pore diameter and wall thickness remain unchanged.

Type: Article
Title: Effect of stirring rate on the morphology of FDU-12 mesoporous silica particles
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/j.micromeso.2017.04.045
Publisher version: https://doi.org/10.1016/j.micromeso.2017.04.045
Language: English
Additional information: © 2017 The Authors. Published by Elsevier Inc. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/).
Keywords: Ordered mesoporous silica, FDU-12, Morphology, Stirring
