A hybrid patient-specific biomechanical model based image registration method for the motion estimation of lungs

Han, L; Dong, H; McClelland, JR; Han, L; Hawkes, DJ; Barratt, DC; (2017) A hybrid patient-specific biomechanical model based image registration method for the motion estimation of lungs. Medical Image Analysis , 39 pp. 87-100. 10.1016/j.media.2017.04.003. Green open access

[img]
Preview
Text

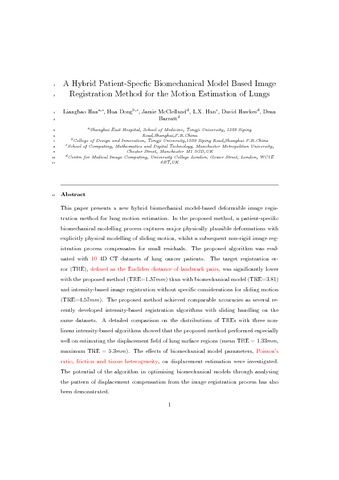

Barratt_Lung_motionHan.pdf - Accepted version

Download (1MB) | Preview

Abstract

This paper presents a new hybrid biomechanical model-based non-rigid image registration method for lung motion estimation. In the proposed method, a patient-specific biomechanical modelling process captures major physically realistic deformations with explicit physical modelling of sliding motion, whilst a subsequent non-rigid image registration process compensates for small residuals. The proposed algorithm was evaluated with 10 4D CT datasets of lung cancer patients. The target registration error (TRE), defined as the Euclidean distance of landmark pairs, was significantly lower with the proposed method (TRE = 1.37 mm) than with biomechanical modelling (TRE = 3.81 mm) and intensity-based image registration without specific considerations for sliding motion (TRE = 4.57 mm). The proposed method achieved a comparable accuracy as several recently developed intensity-based registration algorithms with sliding handling on the same datasets. A detailed comparison on the distributions of TREs with three non-rigid intensity-based algorithms showed that the proposed method performed especially well on estimating the displacement field of lung surface regions (mean TRE = 1.33 mm, maximum TRE = 5.3 mm). The effects of biomechanical model parameters (such as Poisson’s ratio, friction and tissue heterogeneity) on displacement estimation were investigated. The potential of the algorithm in optimising biomechanical models of lungs through analysing the pattern of displacement compensation from the image registration process has also been demonstrated.

Type: Article
Title: A hybrid patient-specific biomechanical model based image registration method for the motion estimation of lungs
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/j.media.2017.04.003
Publisher version: http://doi.org/10.1016/j.media.2017.04.003
Language: English
Additional information: This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: Sliding motion, Biomechanical modelling, Finite element method, Image registration, 4D CT, Lung
