Postirradiation behavior of p-channel charge-coupled devices irradiated at 153 K

Gow, JPD; Wood, D; Murray, NJ; Burt, D; Hall, DJ; Dryer, B; Holland, AD; (2016) Postirradiation behavior of p-channel charge-coupled devices irradiated at 153 K. Journal of Astronomical Telescopes, Instruments, and Systems , 2 (2) , Article 026001. 10.1117/1.JATIS.2.2.026001. Green open access

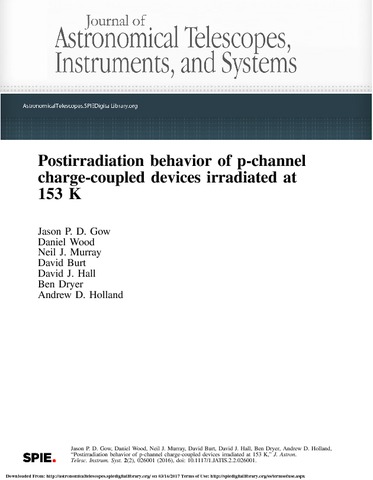

[thumbnail of Gow_JATIS_2_2_026001.pdf]
Preview
Text
Gow_JATIS_2_2_026001.pdf - Published Version

Download (5MB) | Preview

Abstract

The displacement damage hardness that can be achieved using p-channel charge-coupled devices (CCD) was originally demonstrated in 1997, and since then a number of other studies have demonstrated an improved tolerance to radiation-induced charge transfer inefficiency when compared to n-channel CCDs. A number of recent studies have also shown that the temperature history of the device after the irradiation impacts the performance of the detector, linked to the mobility of defects at different temperatures. The initial results from an e2v technologies p-channel CCD204 irradiated at 153 K with 10-MeV equivalent proton fluences of 1.24×109 and 1.24×1011 protons cm-2 is described. The dark current, cosmetic quality, and the number of defects identified using trap pumping immediately were monitored after the irradiation for a period of 150 h with the device held at 153 K and then after different periods of time at room temperature. The device also exhibited a flatband voltage shift of around 30 mV/krad, determined by the reduction in full well capacity.

Type: Article
Title: Postirradiation behavior of p-channel charge-coupled devices irradiated at 153 K
Open access status: An open access version is available from UCL Discovery
DOI: 10.1117/1.JATIS.2.2.026001
Publisher version: http://dx.doi.org/10.1117/1.JATIS.2.2.02600
Language: English
Additional information: © 2016 Society of Photo-Optical Instrumentation Engineers (SPIE). One print or electronic copy may be made for personal use only. Systematic reproduction and distribution, duplication of any material in this publication for a fee or for commercial purposes, or modification of the contents of the publication are prohibited.
