Simulation study of GaAsP/Si tandem solar cells

Onno, AL; Harder, NP; Oberbeck, L; Liu, H; (2016) Simulation study of GaAsP/Si tandem solar cells. Solar Energy Materials and Solar Cells , 145 (3) pp. 206-216. 10.1016/j.solmat.2015.10.028. Green open access

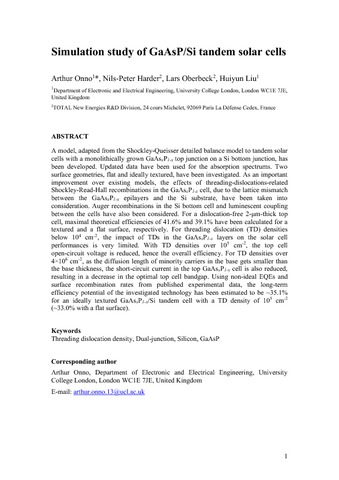

[thumbnail of 2015_08_13_OnnoA_SimulationStudyOfGaAsP-SiTandemSC_ForSubmission-SolMat.pdf]
Preview
Text
2015_08_13_OnnoA_SimulationStudyOfGaAsP-SiTandemSC_ForSubmission-SolMat.pdf

Download (1MB) | Preview

Abstract

A model, adapted from the Shockley-Queisser detailed balance model to tandem solar cells with a monolithically grown GaAsxP1-x top junction on a Si bottom junction, has been developed. Updated data have been used for the absorption spectrums. Two surface geometries, flat and ideally textured, have been investigated. As an important improvement over existing models, the effects of threading-dislocations related Shockley-Read-Hall recombinations in the GaAsxP1-x cell, due to the lattice mismatch between the GaAsxP1-x epilayers and the Si substrate, have been taken into consideration. Auger recombinations in the Si bottom cell and luminescent coupling between the cells have also been considered. For a dislocation free 2-μm thick top cell, maximal theoretical efficiencies of 41.6% and 39.1% have been calculated for a textured and a flat surface, respectively. For threading dislocation (TD) densities below 10^4 cm^-2, the impact of TDs in the GaAsxP1-x layers on the solar cell performances is very limited. With TD densities over 10^5 cm^-2, the top cell open circuit voltage is reduced, hence the overall efficiency. For TD densities over 4×10^6 cm^-2, as the diffusion length of minority carriers in the base gets smaller than the base thickness, the short circuit current in the top GaAsxP1-x cell is also reduced, resulting in a decrease in the optimal top cell bandgap. Using non ideal EQEs and surface recombination rates from published experimental data, the long-term efficiency potential of the investigated technology has been estimated to be ~35.1% for an ideally textured GaAsxP1 x/Si tandem cell with a TD density of 10^5 cm^-2 (~33.0% with a flat surface).

Type: Article
Title: Simulation study of GaAsP/Si tandem solar cells
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/j.solmat.2015.10.028
Publisher version: http://dx.doi.org/10.1016/j.solmat.2015.10.028
Language: English
Additional information: This work is licensed under the terms of the Creative Commons Attribution-NonCommercial-NoDerivativeWorks 3.0 license. You are free to share (copy, distribute and transmit the work), but you must attribute the author, you may not use this work for commercial purposes and you may not alter, transform, or build upon this work and distribute any derivative works you create under a similar license.
Keywords: Threading dislocation density, Dual-junction, Silicon, GaAsP
