Morgan, Zak;
Cho, Youngjun;
Subramanian, Sriram;
(2025)
Rapid in-air Ultrasound Holography Measurement and Camera-in-the-loop Generation using Thermography.
Communications Engineering
, 4
, Article 101.
Preview |
Text

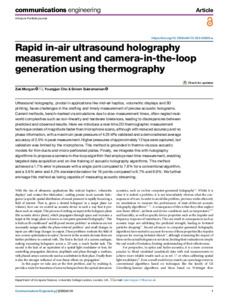

Morgan_s44172-025-00439-w.pdf Download (2MB) | Preview |
Abstract
Ultrasound holography, pivotal in applications like mid-air haptics, volumetric displays and 3D printing, faces challenges in the crafting and timely measurement of precise acoustic holograms. Current methods, bench-marked via simulations due to slow measurement times, often neglect real-world complexities such as non-linearity and hardware tolerances, leading to discrepancies between predicted and observed results. Here we introduce a real-time 2D thermographic measurement technique orders of magnitude faster than microphone scans, although with reduced accuracy and no phase information, with a maximum peak pressure of 4.25 kPa validated and a demonstrated average accuracy of 2.5% in peak measurement. Higher pressures of approximately 12kpa were captured, but validation was limited by the microphone. This method is grounded in thermo-viscous acoustic models for thin-ducts and micro-perforated plates. Finally, we integrate this with holography algorithms to propose a camera-in-the-loop algorithm that employs real-time measurement, enabling targeted data acquisition and on-line training of acoustic holography algorithms. This method achieved a 1.7% error in pressure with a single point compared to 7.8% for a conventional algorithm, and a 3.6% error and 4.2% standard deviation for 16 points compared to 9.7% and 6.9%. We further envisage this method as being capable of measuring acoustic streaming.
| Type: | Article |
|---|---|
| Title: | Rapid in-air Ultrasound Holography Measurement and Camera-in-the-loop Generation using Thermography |
| Open access status: | An open access version is available from UCL Discovery |
| Publisher version: | https://doi.org/10.1038/s44172-025-00439-w |
| Language: | English |
| Additional information: | Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. |
| Keywords: | Acoustics, Computational science |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Computer Science |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10209364 |
