Huang, Luofeng;
Yang, Yifeng;
Khojasteh, Danial;
Ou, Binjian;
Luo, Zhenhua;
(2024)
Floating solar power loss due to motions induced by ocean waves: An
experimental study.
Ocean Engineering
, 312
(Part-1)
, Article 118988. 10.1016/j.oceaneng.2024.118988.
Preview |
Text

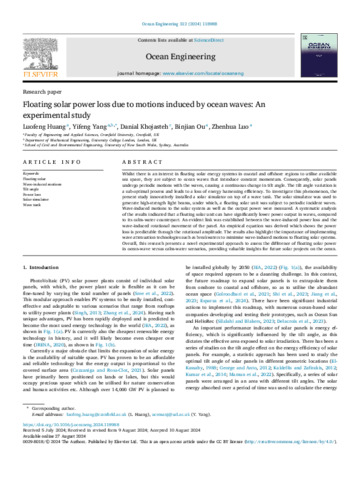

Yang_1-s2.0-S0029801824023266-main.pdf Download (3MB) | Preview |
Abstract
Whilst there is an interest in floating solar energy systems in coastal and offshore regions to utilise available sea space, they are subject to ocean waves that introduce constant momentum. Consequently, solar panels undergo periodic motions with the waves, causing a continuous change in tilt angle. The tilt angle variation is a sub-optimal process and leads to a loss of energy harnessing efficiency. To investigate this phenomenon, the present study innovatively installed a solar simulator on top of a wave tank. The solar simulator was used to generate high-strength light beams, under which, a floating solar unit was subject to periodic incident waves. Wave-induced motions to the solar system as well as the output power were measured. A systematic analysis of the results indicated that a floating solar unit can have significantly lower power output in waves, compared to its calm-water counterpart. An evident link was established between the wave-induced power loss and the wave-induced rotational movement of the panel. An empirical equation was derived which shows the power loss is predictable through the rotational amplitude. The results also highlight the importance of implementing wave attenuation technologies such as breakwaters to minimise wave-induced motions to floating solar systems. Overall, this research presents a novel experimental approach to assess the difference of floating solar power in ocean-wave versus calm-water scenarios, providing valuable insights for future solar projects on the ocean.
| Type: | Article |
|---|---|
| Title: | Floating solar power loss due to motions induced by ocean waves: An experimental study |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.oceaneng.2024.118988 |
| Publisher version: | http://dx.doi.org/10.1016/j.oceaneng.2024.118988 |
| Language: | English |
| Additional information: | Copyright © 2024 The Authors. Published by Elsevier Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Floating solar; Wave-induced motions; Tilt angle; Power loss; Solar simulator; Wave tank |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10197534 |
