Comitti, Alessandro;
Bosi, Federico;
(2024)

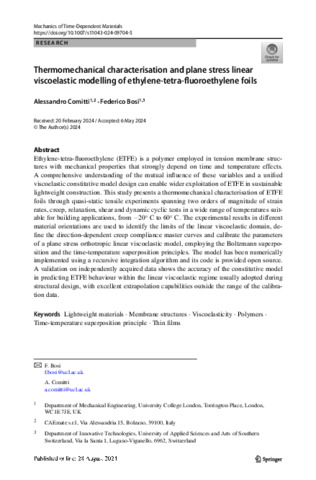

Thermomechanical characterisation and plane stress linear viscoelastic modelling of ethylene-tetra-fluoroethylene foils.
Mechanics of Time-Dependent Materials
10.1007/s11043-024-09704-5.
(In press).
Preview |
Text
Comitti_Thermomechanical characterisation and plane stress linear viscoelastic modelling of ethylene-tetra-fluoroethylene foils_AOP.pdf Download (4MB) | Preview |
Abstract
Ethylene-tetra-fluoroethylene (ETFE) is a polymer employed in tension membrane structures with mechanical properties that strongly depend on time and temperature effects. A comprehensive understanding of the mutual influence of these variables and a unified viscoelastic constitutive model design can enable wider exploitation of ETFE in sustainable lightweight construction. This study presents a thermomechanical characterisation of ETFE foils through quasi-static tensile experiments spanning two orders of magnitude of strain rates, creep, relaxation, shear and dynamic cyclic tests in a wide range of temperatures suitable for building applications, from -20 Celsius degrees to 60 Celsius degrees. The experimental results in different material orientations are used to identify the limits of the linear viscoelastic domain, define the direction-dependent creep compliance master curves and calibrate the parameters of a plane stress orthotropic linear viscoelastic model, employing the Boltzmann superposition and the time-temperature superposition principles. The model has been numerically implemented using a recursive integration algorithm and its code is provided open source. A validation on independently acquired data shows the accuracy of the constitutive model in predicting ETFE behaviour within the linear viscoelastic regime usually adopted during structural design, with excellent extrapolation capabilities outside the range of the calibration data.
| Type: | Article |
|---|---|
| Title: | Thermomechanical characterisation and plane stress linear viscoelastic modelling of ethylene-tetra-fluoroethylene foils |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1007/s11043-024-09704-5 |
| Publisher version: | http://dx.doi.org/10.1007/s11043-024-09704-5 |
| Language: | English |
| Additional information: | © 2024 Springer Nature. This article is licensed under a Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Lightweight materials, Membrane structures, Viscoelasticity, Polymers, Time-temperature superposition principle, Thin films |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10196705 |
