Radogna, Raffaella;
Shaikh, Saad;
Jolly, Simon;
(2021)
A scintillator-based calorimeter for particle therapy verification.
Presented at: 2021 IEEE Nuclear Science Symposium and Medical Imaging Conference, Virtual conference.
Preview |
Text

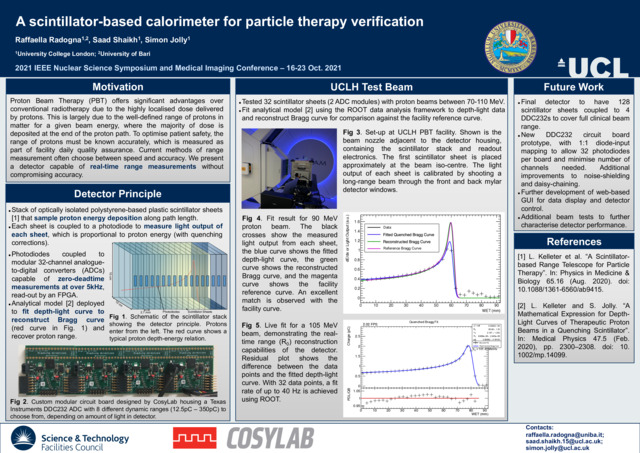

IEEE NSS MIC Poster.pdf - Published Version Download (4MB) | Preview |
Abstract
Particle beam therapy provides significant benefits over conventional X-ray radiotherapy. Protons and heavier ions lose most of their energy in the last few millimetres of their path (Bragg Peak), enabling tumours to be targeted with greater precision and reducing the collateral damage to surrounding healthy tissue. An important challenge in particle therapy is the uncertainty in the range of the beam. To ensure that treatment is delivered safely, a range of quality assurance (QA) procedures are carried out each day before treatment starts. A detector is currently under development at University College London to provide fast and accurate proton range verifications, and speed up the daily QA process. The new system utilises a multi-layer calorimeter to record the depth-dose distribution of a proton therapy treatment beam and make direct measurements of the Water Equivalent Path Length (WEPL) with high resolution at clinical rates. Preliminary tests show the potential of using the range calorimeter for range measurements of ion beams. The range calorimeter is used to test the achievable sensitivity of real-time theranostics for carbon treatment using a mixed He/C beam. Range uncertainties caused by intra-fractional motion during carbon ion treatment could be monitored online using a small contamination of helium ions in the beam. At the same energy per nucleon, helium ions have about three times the range of carbon ions, which could allow, for certain tumours, a simultaneous use of the carbon beam for treatment and the helium beam for imaging. In this talk, the design and performance of the Quality Assurance Range Calorimeter (QuARC) are presented.
| Type: | Poster |
|---|---|
| Title: | A scintillator-based calorimeter for particle therapy verification |
| Event: | 2021 IEEE Nuclear Science Symposium and Medical Imaging Conference |
| Location: | Virtual conference |
| Dates: | 16 - 23 October 2021 |
| Open access status: | An open access version is available from UCL Discovery |
| Publisher version: | https://nssmic.ieee.org/2021/ |
| Language: | English |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10192855 |
