Rapid 2D 23Na MRI of the calf using a denoising convolutional neural network

Baker, Rebecca R; Muthurangu, Vivek; Rega, Marilena; Walsh, Stephen B; Steeden, Jennifer A; (2024) Rapid 2D 23Na MRI of the calf using a denoising convolutional neural network. Magnetic Resonance Imaging , 110 pp. 184-194. 10.1016/j.mri.2024.04.027. Green open access

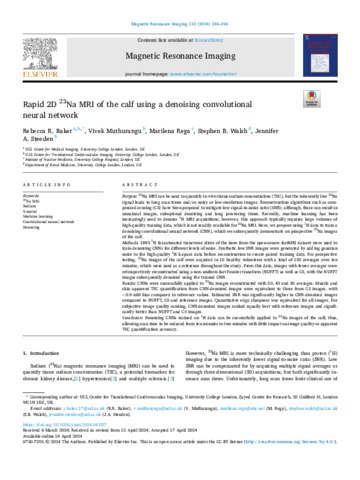

[thumbnail of 1-s2.0-S0730725X24001401-main.pdf]
Preview
PDF
1-s2.0-S0730725X24001401-main.pdf - Published Version

Download (7MB) | Preview

Abstract

PURPOSE: 23Na MRI can be used to quantify in-vivo tissue sodium concentration (TSC), but the inherently low 23Na signal leads to long scan times and/or noisy or low-resolution images. Reconstruction algorithms such as compressed sensing (CS) have been proposed to mitigate low signal-to-noise ratio (SNR); although, these can result in unnatural images, suboptimal denoising and long processing times. Recently, machine learning has been increasingly used to denoise 1H MRI acquisitions; however, this approach typically requires large volumes of high-quality training data, which is not readily available for 23Na MRI. Here, we propose using 1H data to train a denoising convolutional neural network (CNN), which we subsequently demonstrate on prospective 23Na images of the calf. METHODS: 1893 1H fat-saturated transverse slices of the knee from the open-source fastMRI dataset were used to train denoising CNNs for different levels of noise. Synthetic low SNR images were generated by adding gaussian noise to the high-quality 1H k-space data before reconstruction to create paired training data. For prospective testing, 23Na images of the calf were acquired in 10 healthy volunteers with a total of 150 averages over ten minutes, which were used as a reference throughout the study. From this data, images with fewer averages were retrospectively reconstructed using a non-uniform fast Fourier transform (NUFFT) as well as CS, with the NUFFT images subsequently denoised using the trained CNN. RESULTS: CNNs were successfully applied to 23Na images reconstructed with 50, 40 and 30 averages. Muscle and skin apparent TSC quantification from CNN-denoised images were equivalent to those from CS images, with <0.9 mM bias compared to reference values. Estimated SNR was significantly higher in CNN-denoised images compared to NUFFT, CS and reference images. Quantitative edge sharpness was equivalent for all images. For subjective image quality ranking, CNN-denoised images ranked equally best with reference images and significantly better than NUFFT and CS images. CONCLUSION: Denoising CNNs trained on 1H data can be successfully applied to 23Na images of the calf; thus, allowing scan time to be reduced from ten minutes to two minutes with little impact on image quality or apparent TSC quantification accuracy.

Type: Article
Title: Rapid 2D 23Na MRI of the calf using a denoising convolutional neural network
Location: Netherlands
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/j.mri.2024.04.027
Publisher version: http://dx.doi.org/10.1016/j.mri.2024.04.027
Language: English
Additional information: © 2024 The Authors. Published by Elsevier Inc. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/).
Keywords: (23)Na MRI, Convolutional neural network, Denoising, Machine learning, Sodium, X-nuclei
