Predictive modelling and novel materials for pharmaceutical 3D printing

Ong, Jun Jie; (2024) Predictive modelling and novel materials for pharmaceutical 3D printing. Doctoral thesis (Ph.D), UCL (University College London).

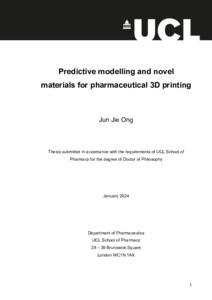

[thumbnail of thesis_jjong_final.pdf] Text
thesis_jjong_final.pdf - Other
Access restricted to UCL open access staff until 1 March 2025.

Download (19MB)

Abstract

Pharmaceutical 3D printing (3DP) is revolutionising healthcare by enabling the production of bespoke medicines, tailored to an individual’s unique clinical needs, genetic makeup, physiology, and preference. Various 3DP technologies have been explored for pharmaceutical applications, such as fused deposition modelling (FDM), inkjet printing, and vat photopolymerization (e.g. digital light processing (DLP), volumetric printing). However, the clinical translation of 3DP is impeded by numerous challenges, such as the empirical process of formulation development, and material limitations for vat photopolymerization 3DP. Specifically on the latter, existing materials used in pharmaceutical vat photopolymerization 3DP are limited to insoluble matrices, which restricts the potential application of the technology. Therefore, this PhD thesis aims to (a) develop predictive models using machine learning (ML) to accelerate 3DP formulation development, and, owing to lack of material diversity and sufficient data in pharmaceutical vat photopolymerization, (b) develop a novel material that gives soluble matrices for vat photopolymerization 3DP. The major findings were as follows: (1) ML models provided accurate predictions of FDM printability and filament characteristics, and narrower temperature ranges for hot melt extrusion and FDM printing than conventional guidance and previous computational models. (2) ML models gave high prediction accuracies for inkjet printability and print quality. The ML model also provided better prediction accuracy than conventional guidance based on the ink’s Ohnesorge number. (3) Formulations based on supramolecular chemistry, comprising [2-(acryloyloxy)ethyl]trimethylammonium chloride and 1-vinyl-2-pyrrolidone, were successful used to print tablets via DLP 3DP that dissolved within 45 minutes to 5 hours in dissolution media. (4) Volumetric printing was successfully used to print water-soluble tablets within 11 seconds, and models based on their NIR spectra provided high drug loading prediction accuracies. Overall, this research demonstrates the potential for ML models to accurately predict printing outcomes, and reports the first water-soluble dosage form printed via vat photopolymerization.

Type: Thesis (Doctoral)
Qualification: Ph.D
Title: Predictive modelling and novel materials for pharmaceutical 3D printing
Language: English
Additional information: Copyright © The Author 2024. Original content in this thesis is licensed under the terms of the Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) Licence (https://creativecommons.org/licenses/by-nc/4.0/). Any third-party copyright material present remains the property of its respective owner(s) and is licensed under its existing terms. Access may initially be restricted at the author’s request.
UCL classification: UCL
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Life Sciences
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Life Sciences > UCL School of Pharmacy
URI: https://discovery.ucl.ac.uk/id/eprint/10187675
