Development and characterizations of graded porous titanium scaffolds via selective laser melting for orthopedics applications

Yu, Ai-hua; Xu, Wei; Lu, Xin; Tamaddon, Maryam; Liu, Bo-wen; Tian, Shi-wei; Zhang, Ce; ... Liu, Chao-zong; + view all (2023) Development and characterizations of graded porous titanium scaffolds via selective laser melting for orthopedics applications. Transactions of Nonferrous Metals Society of China , 33 (6) pp. 1755-1767. 10.1016/S1003-6326(23)66219-3. Green open access

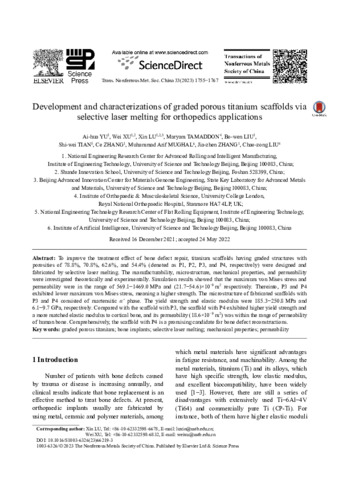

[thumbnail of Liu_Development and characterizations of graded porous titanium scaffolds via.pdf]
Preview
Text
Liu_Development and characterizations of graded porous titanium scaffolds via.pdf

Download (1MB) | Preview

Abstract

To improve the treatment effect of bone defect repair, titanium scaffolds having graded structures with porosities of 78.8%, 70.8%, 62.6%, and 54.4% (denoted as P1, P2, P3, and P4, respectively) were designed and fabricated by selective laser melting. The manufacturability, microstructure, mechanical properties, and permeability were investigated theoretically and experimentally. Simulation results showed that the maximum von Mises stress and permeability were in the range of 569.1–1469.0 MPa and (21.7–54.6)×10−9 m2 respectively. Thereinto, P3 and P4 exhibited lower maximum von Mises stress, meaning a higher strength. The microstructure of fabricated scaffolds with P3 and P4 consisted of martensitic α′ phase. The yield strength and elastic modulus were 185.3-250.8 MPa and 6.1-9.7 GPa, respectively. Compared with the scaffold with P3, the scaffold with P4 exhibited higher yield strength and a more matched elastic modulus to cortical bone, and its permeability (18.6×10−9 m2) was within the range of permeability of human bone. Comprehensively, the scaffold with P4 is a promising candidate for bone defect reconstructions.

Type: Article
Title: Development and characterizations of graded porous titanium scaffolds via selective laser melting for orthopedics applications
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/S1003-6326(23)66219-3
Publisher version: https://doi.org/10.1016/S1003-6326(23)66219-3
Language: English
Additional information: This article is available under the Creative Commons CC-BY-NC-ND,(https://creativecommons.org/licenses/) license and permits non-commercial use of the work as published, without adaptation or alteration provided the work is fully attributed.
Keywords: Graded porous titanium; bone implants; selective laser melting; mechanical properties; permeability
