Wang, Mingqing;
Mandal, Suman;
Hou, Yanbei;
Choy, Kwang-Leong;
Anthopoulos, Thomas D;
(2023)
Surface Modification of Hetero-phase Nanoparticles for Low-Cost Solution-Processable High-k Dielectric Polymer Nanocomposites.
ACS Applied Materials & Interfaces
10.1021/acsami.2c19559.
(In press).
Preview |
Text

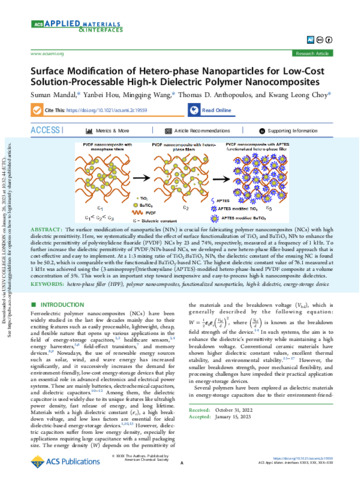

acsami.2c19559.pdf - Published Version Download (4MB) | Preview |
Abstract
The surface modification of nanoparticles (NPs) is crucial for fabricating polymer nanocomposites (NCs) with high dielectric permittivity. Here, we systematically studied the effect of surface functionalization of TiO2 and BaTiO3 NPs to enhance the dielectric permittivity of polyvinylidene fluoride (PVDF) NCs by 23 and 74%, respectively, measured at a frequency of 1 kHz. To further increase the dielectric permittivity of PVDF/NPs-based NCs, we developed a new hetero-phase filler-based approach that is cost-effective and easy to implement. At a 1:3 mixing ratio of TiO2:BaTiO3 NPs, the dielectric constant of the ensuing NC is found to be 50.2, which is comparable with the functionalized BaTiO3-based NC. The highest dielectric constant value of 76.1 measured at 1 kHz was achieved using the (3-aminopropyl)triethoxysilane (APTES)-modified hetero-phase-based PVDF composite at a volume concentration of 5%. This work is an important step toward inexpensive and easy-to-process high-k nanocomposite dielectrics.
| Type: | Article |
|---|---|
| Title: | Surface Modification of Hetero-phase Nanoparticles for Low-Cost Solution-Processable High-k Dielectric Polymer Nanocomposites |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1021/acsami.2c19559 |
| Publisher version: | https://doi.org/10.1021/acsami.2c19559 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third-party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Hetero-phase filler (HPF) polymer nanocomposites functionalized nanoparticles high-k dielectric energy-storage device |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > MAPS Faculty Office UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > MAPS Faculty Office > Institute for Materials Discovery |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10163909 |
